TriPod

[TomyJ]

eTrike

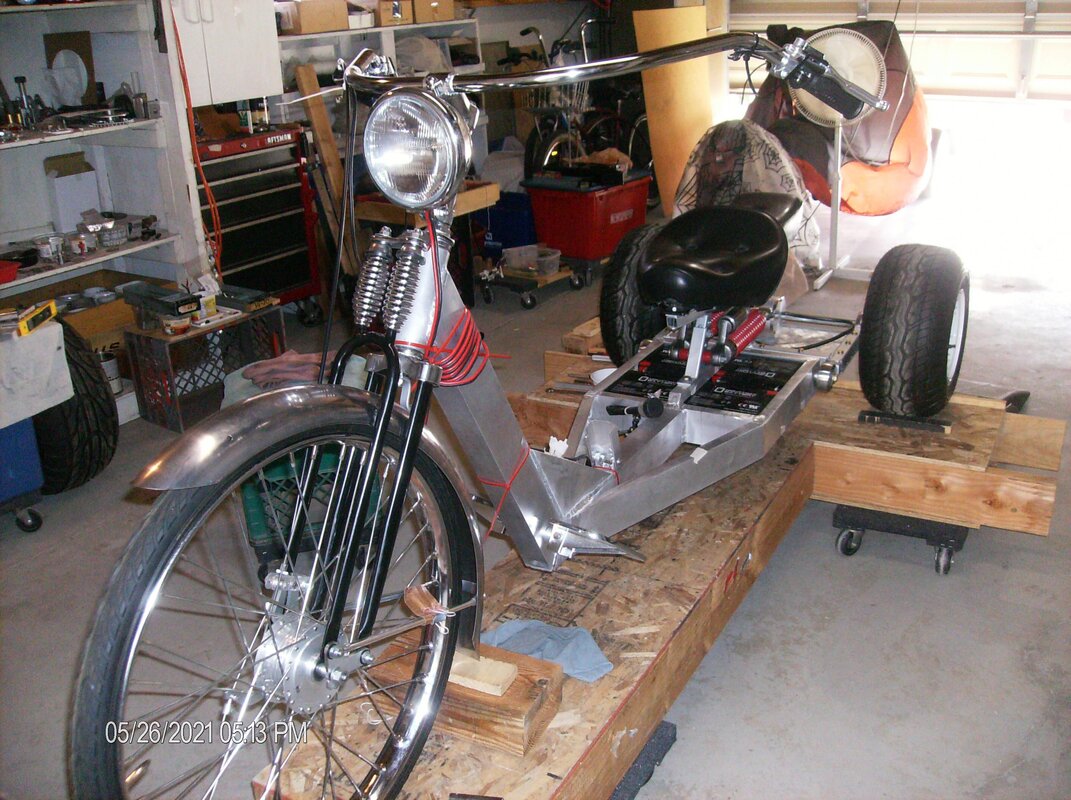

Diamond Plate,

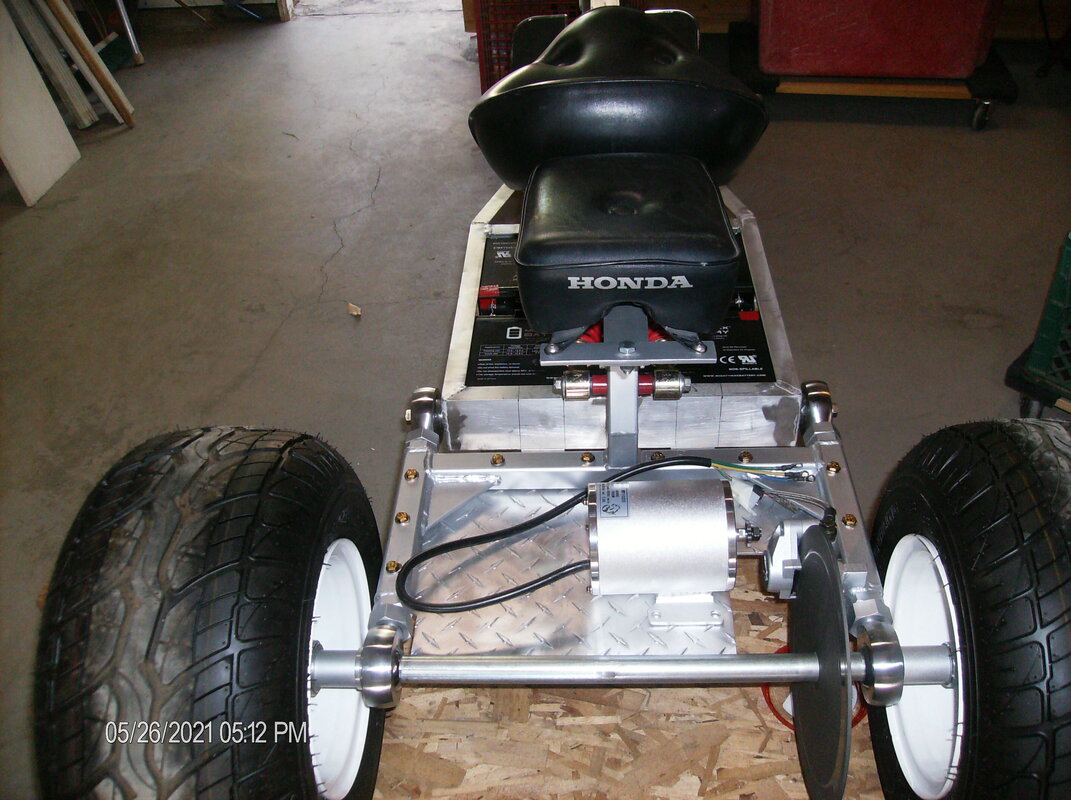

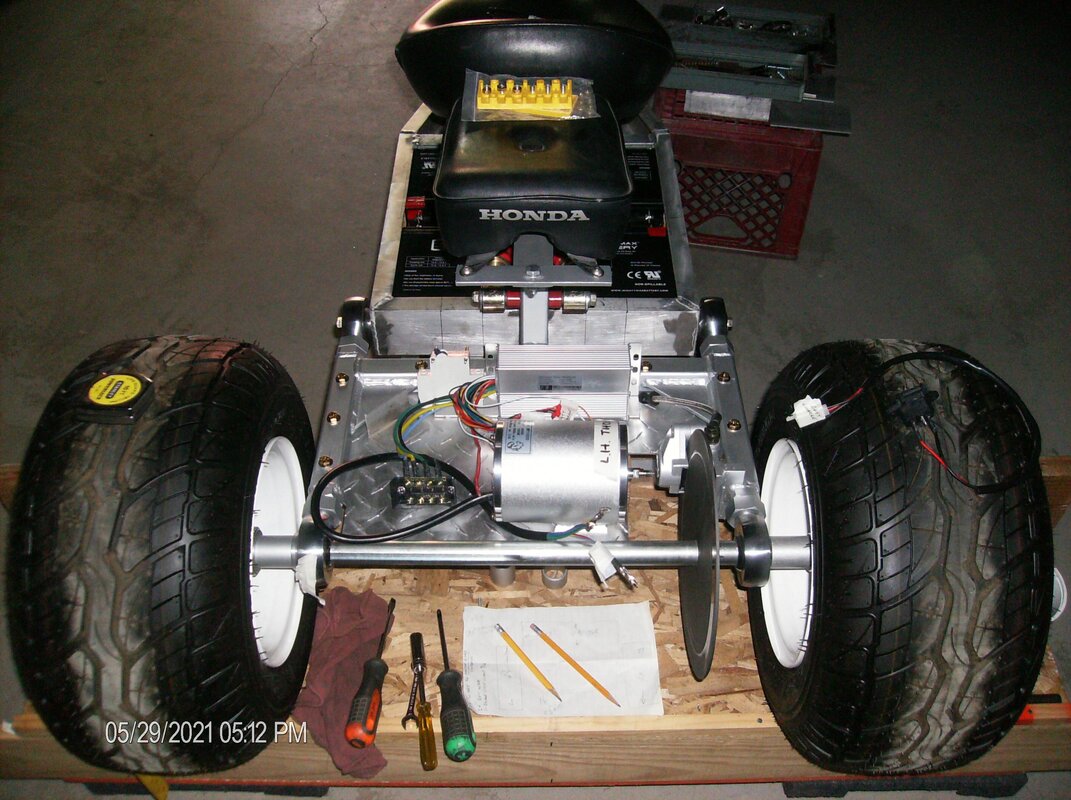

Batteries 48V. Going to change the sprockets to go-cart size (bigger) and chain (stronger)...



[Jack Klarich]

Good job, I like the diamond plate



[Zammy]

That's shaping up nicely Tom.



[TomyJ]

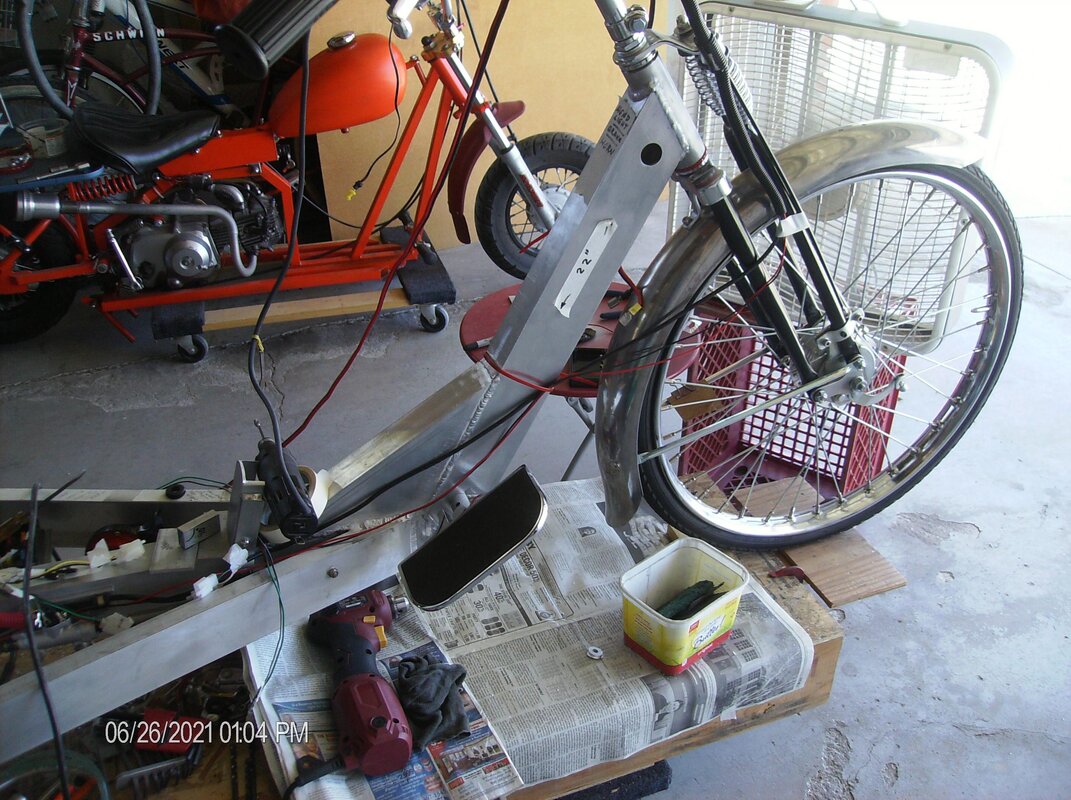

Brackets

---

-----So many brackets...



[LarryA]

looks like you are close to getting some wind on your face!



[TomyJ]

Memorial Day Weekend


Memorial Day Weekend, I spent many hours flying in the back seat of these T-33's..



[Gorilla]

View attachment 99486Memorial Day Weekend, I spent many hours flying in the back seat of these T-33's...:clapping:

Back in 1968 My Captain friend (Pilot) I was in the back seat. We were in the Duluth Minn. area doing radar check on the defense NORAD radars. We look down about 10,000 ft and saw a pair of F-106's and decided to see if we could jump them out of the sun. All was going great until they spotted us. Damn those afterburners are pretty. Fun times also in the back seat. Nice view though when you are upside down in a dive.



[TomyJ]

USAF



T-38 Talon My wildest ride, BUT! The biggest thrill was Ground Crew and Material Control on the SR-71, All at Beal AFB, California,



[TomyJ]

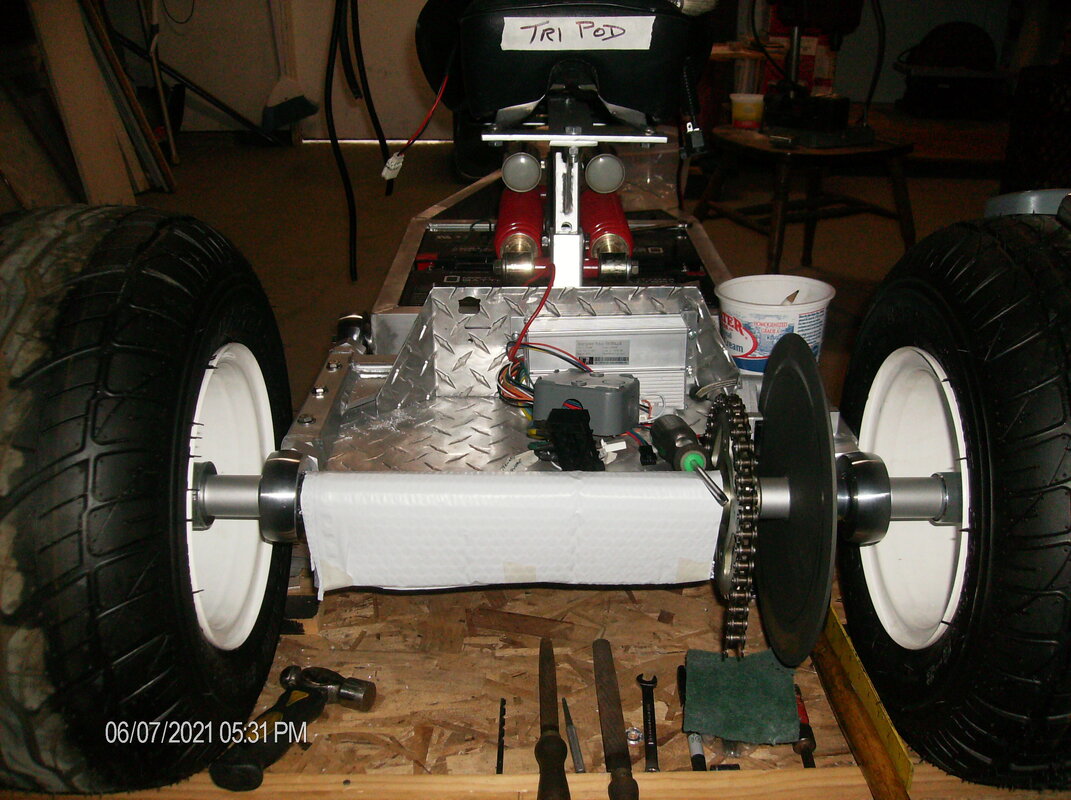

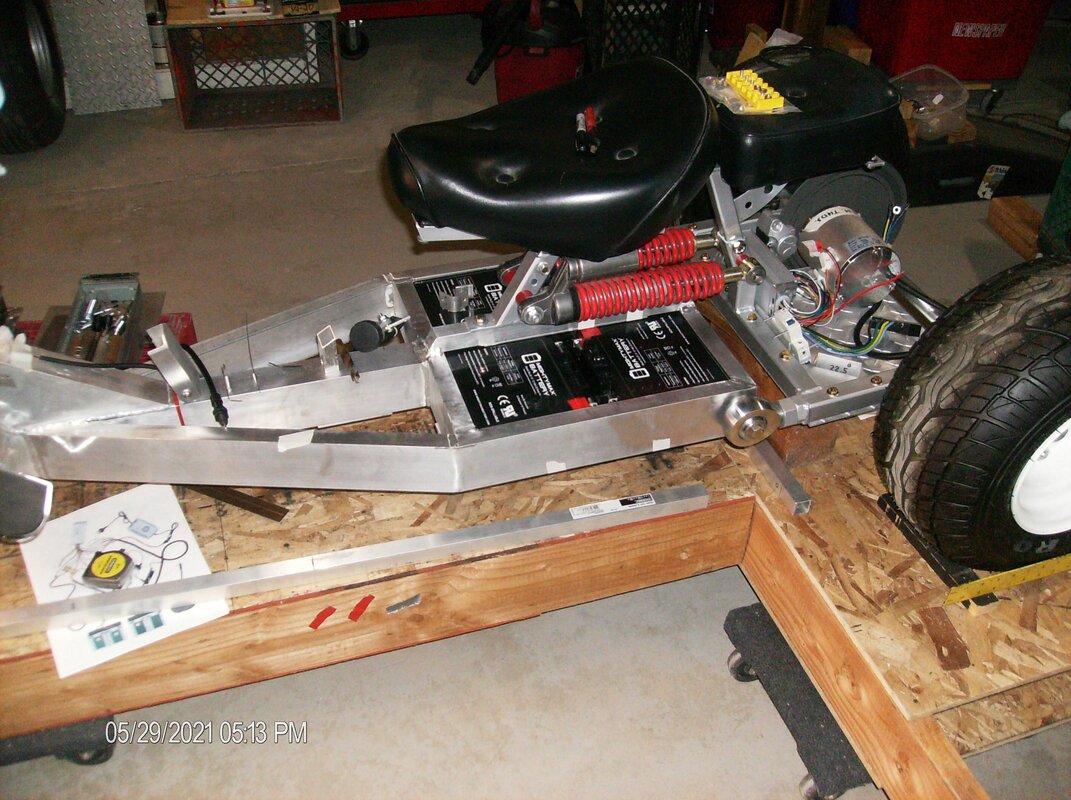

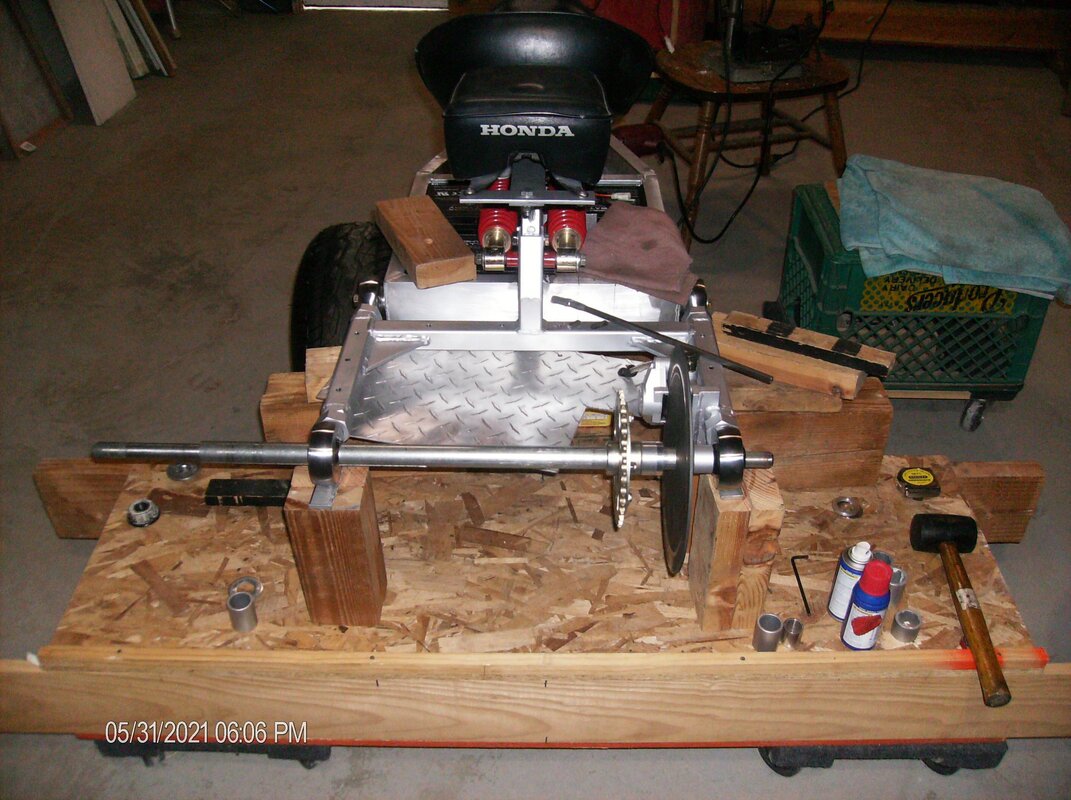

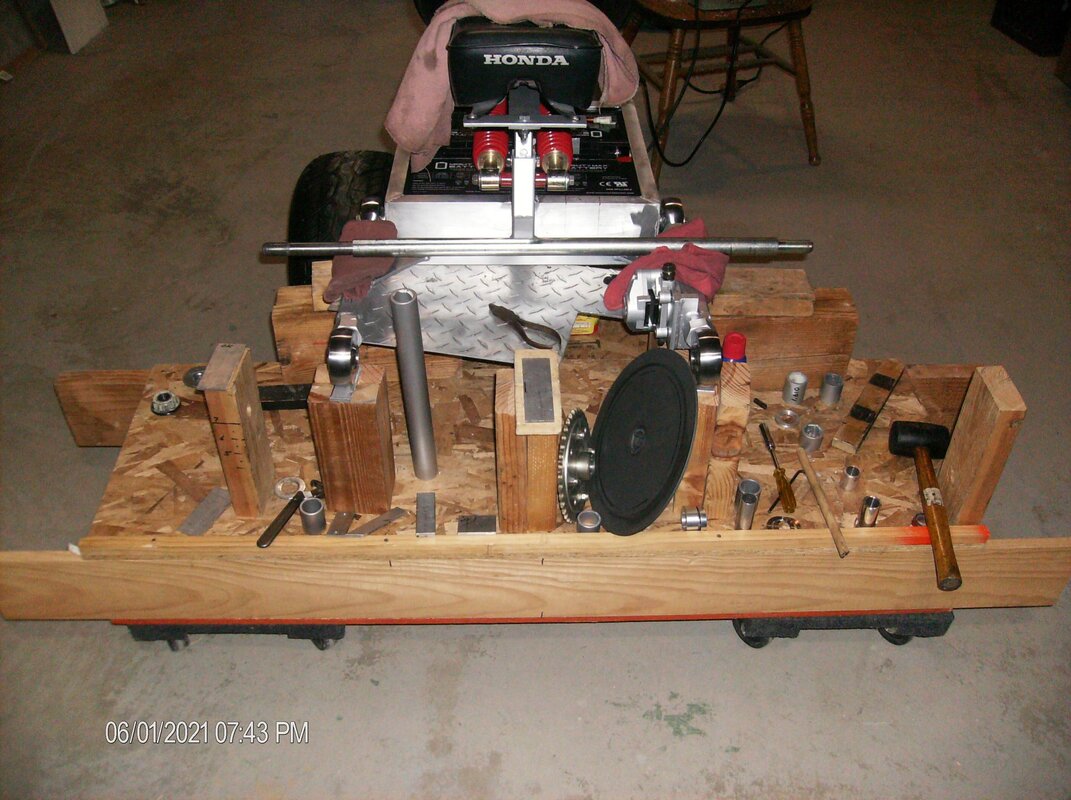

Axel spacers

---And I thought this was going to be easy...



[TomyJ]

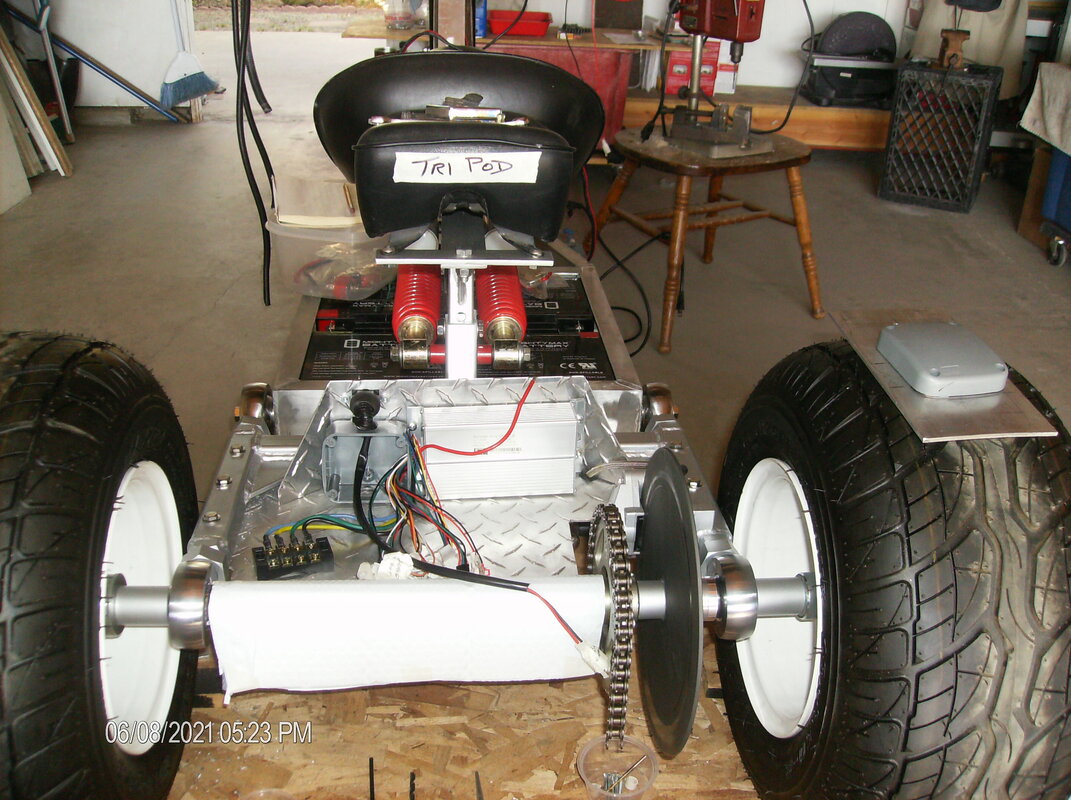

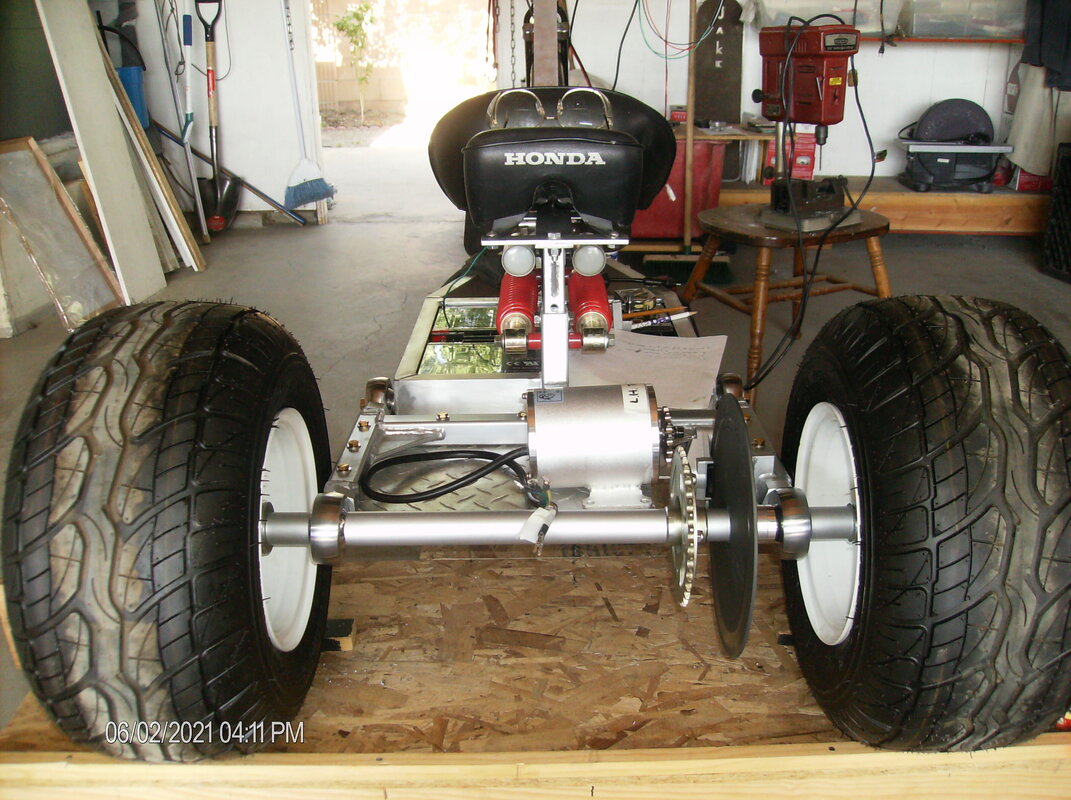

Wiring panel, Junction box and circuit breaker (40 amps x 48 volts) panel coming soon, Motor and sprockets are at the machine shop, :clapping:



[TomyJ]

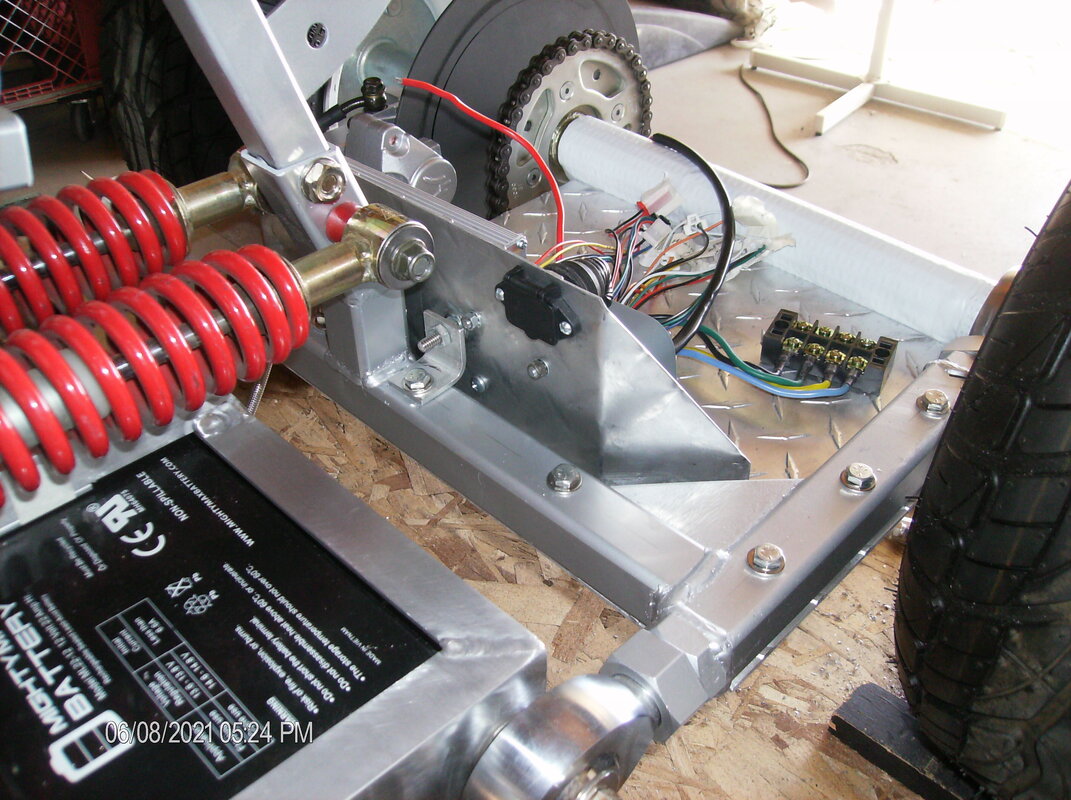

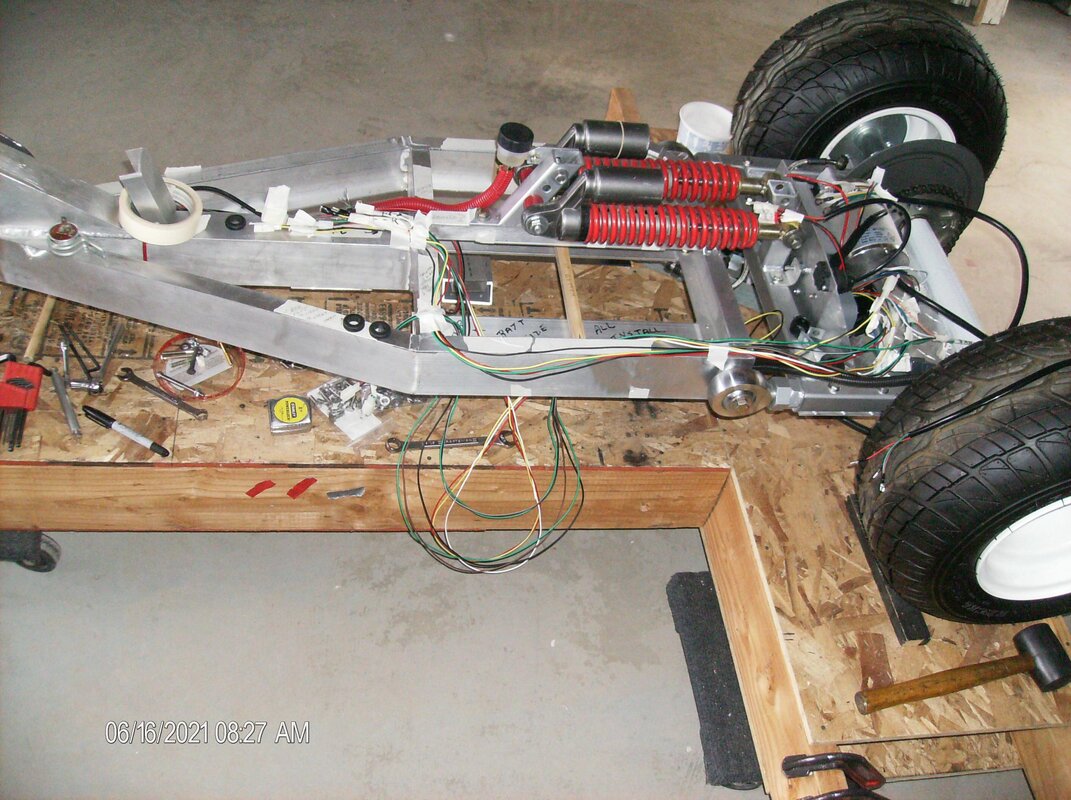

Wiring







Battery Port is in, I am not liking square holes from round holes. I am not a fan of wiring, Now to run it from the handlebars (Throttle, Key switch, Brake lever wires, Headlight) Into the headstock, where I hope to run the 3/4 plastic conduit with the battery leads to the swing arm wiring panel, :gah:



[Zammy]

I'm seeing a lot of progress Tomy, ThumbUp



[TomyJ]

OMG! ToWire





Ordered another J-box, fuse block for the lights and 3/4 &1" grommets, And insulated line clamps...



[TomyJ]

Junction Box

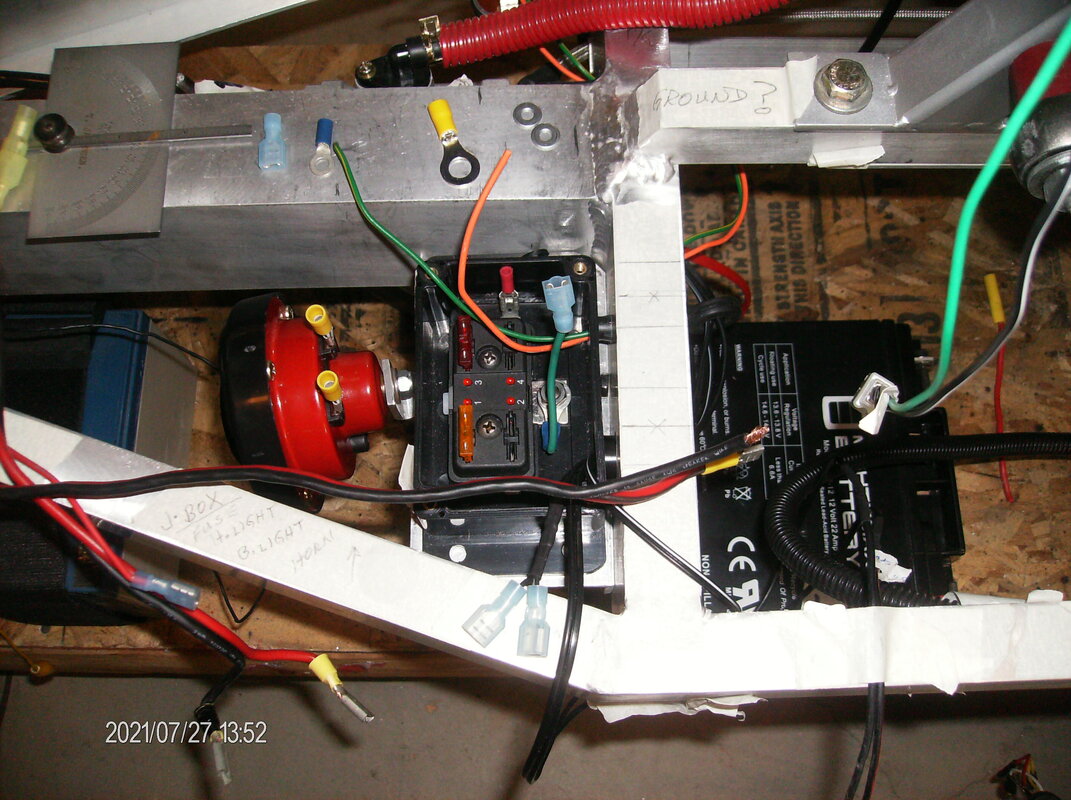

Made the Alum frame for the J-Box with the fuse block inside (water proof) for the horn/ lights/flasher now need to drill wiring side holes, How can this little stuff take so damn long..



[Jack Klarich]

View attachment 100255Made the Alum frame for the J-Box with the fuse block inside (water proof) for the horn/ lights/flasher now need to drill wiring side holes, How can this little stuff take so damn long...:gah:

Attention to detail and getting it right



[TomyJ]

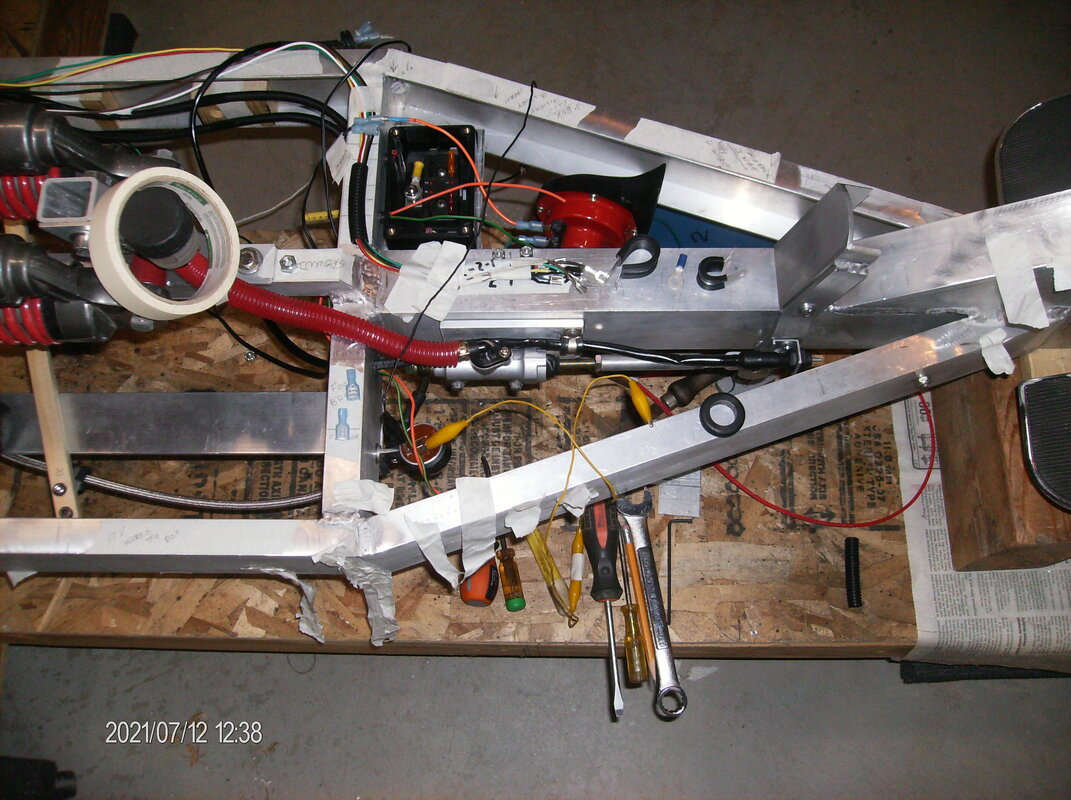

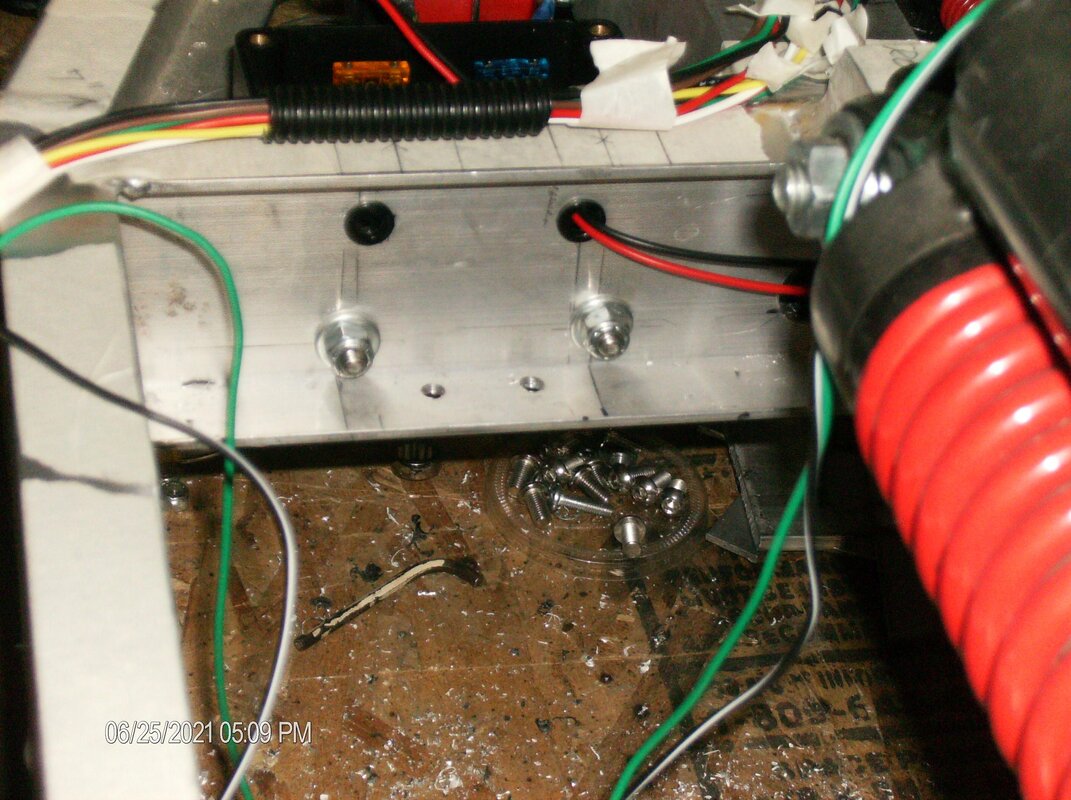

-Plastic snap in grommets to fuse block-



-Wire hole-


-HandleBar wires to bulkhead and fuse block



[Zammy]

Tom, one step at a time, you'll get it right and it's looking good.



[TomyJ]

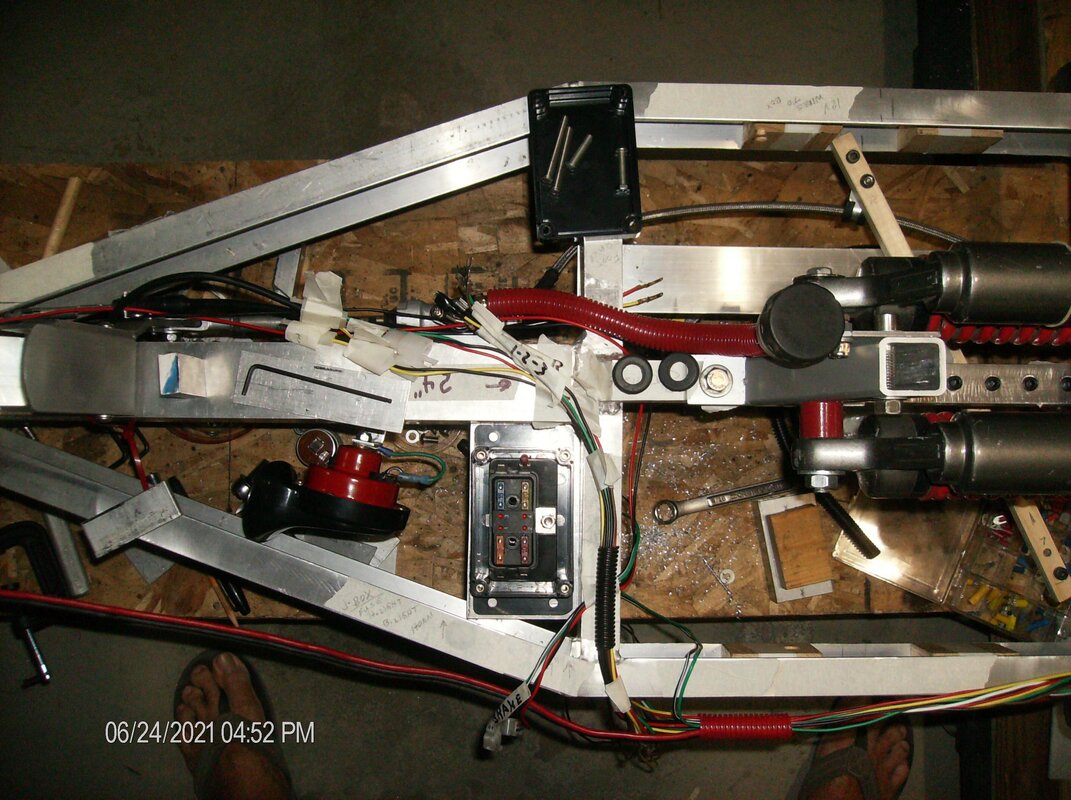

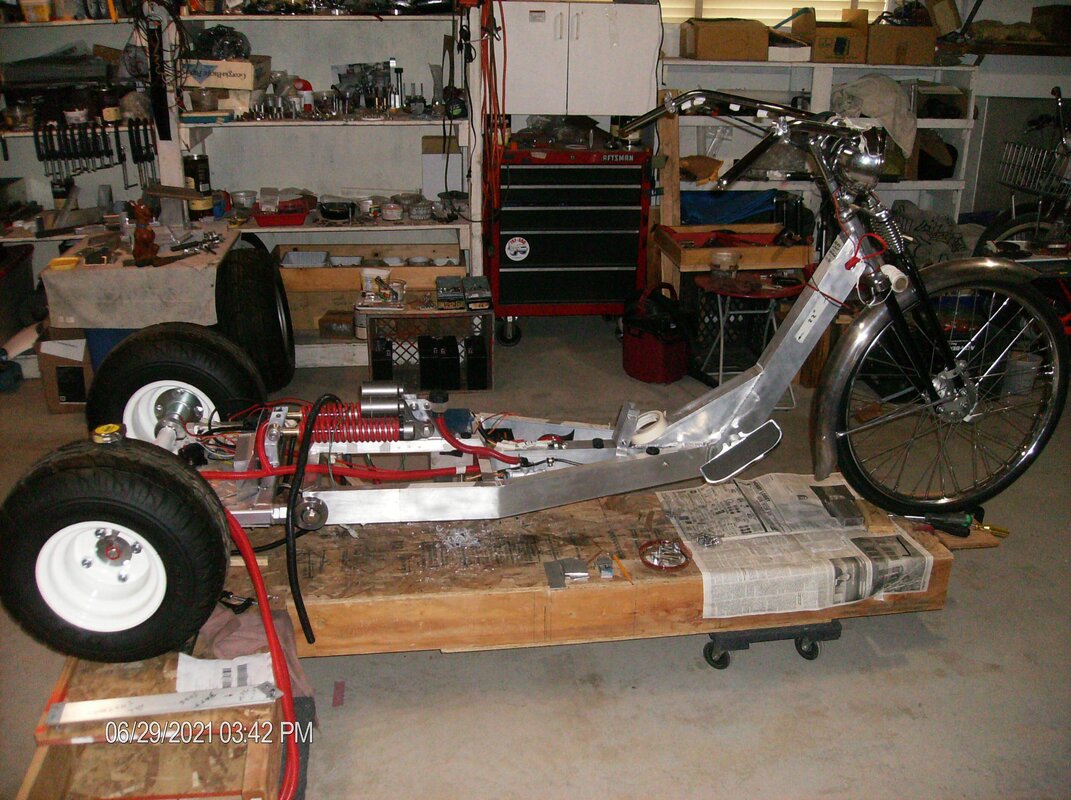

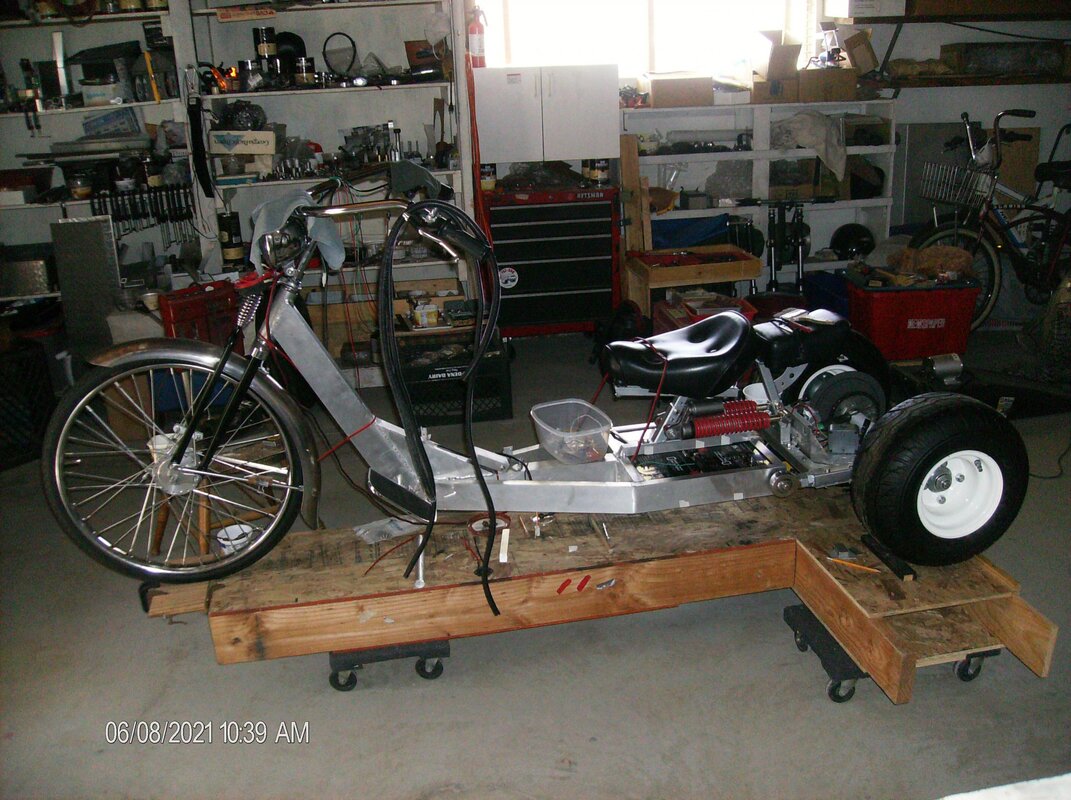

More wires

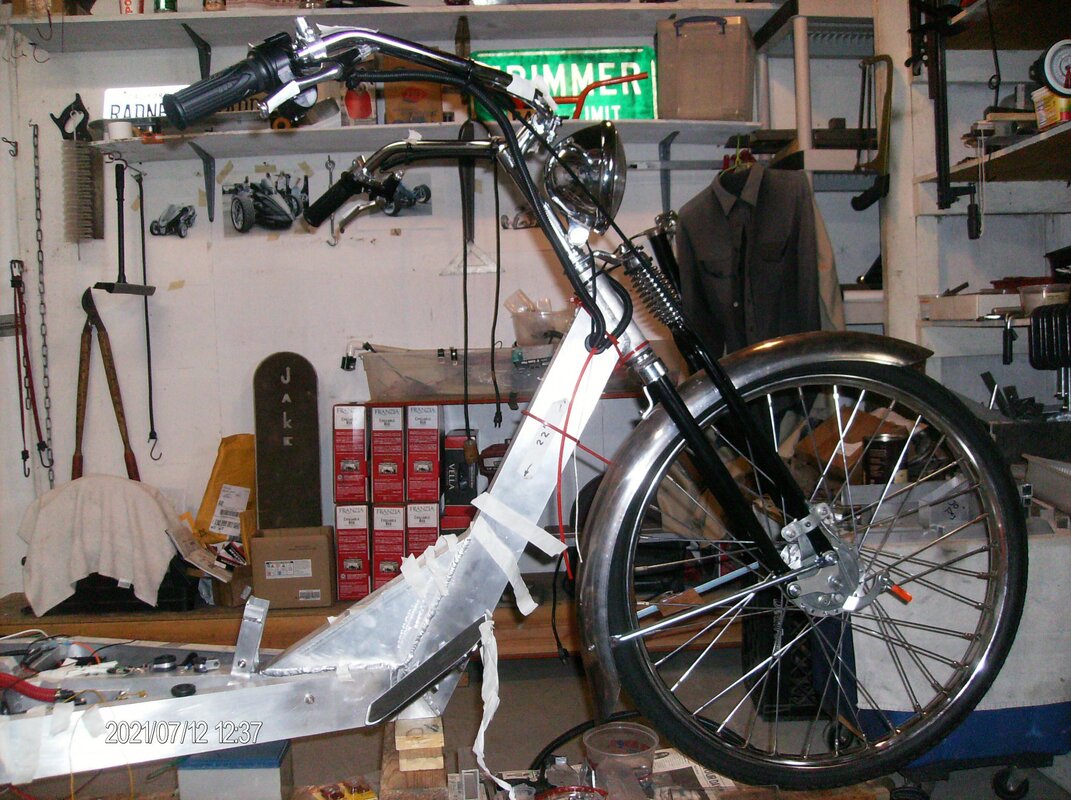

-Handlebar wires, Throttle, key switch, Front brake light switch, Headlight, Horn. Some to be lengthened and some the connectors changed...:gah:



[TomyJ]

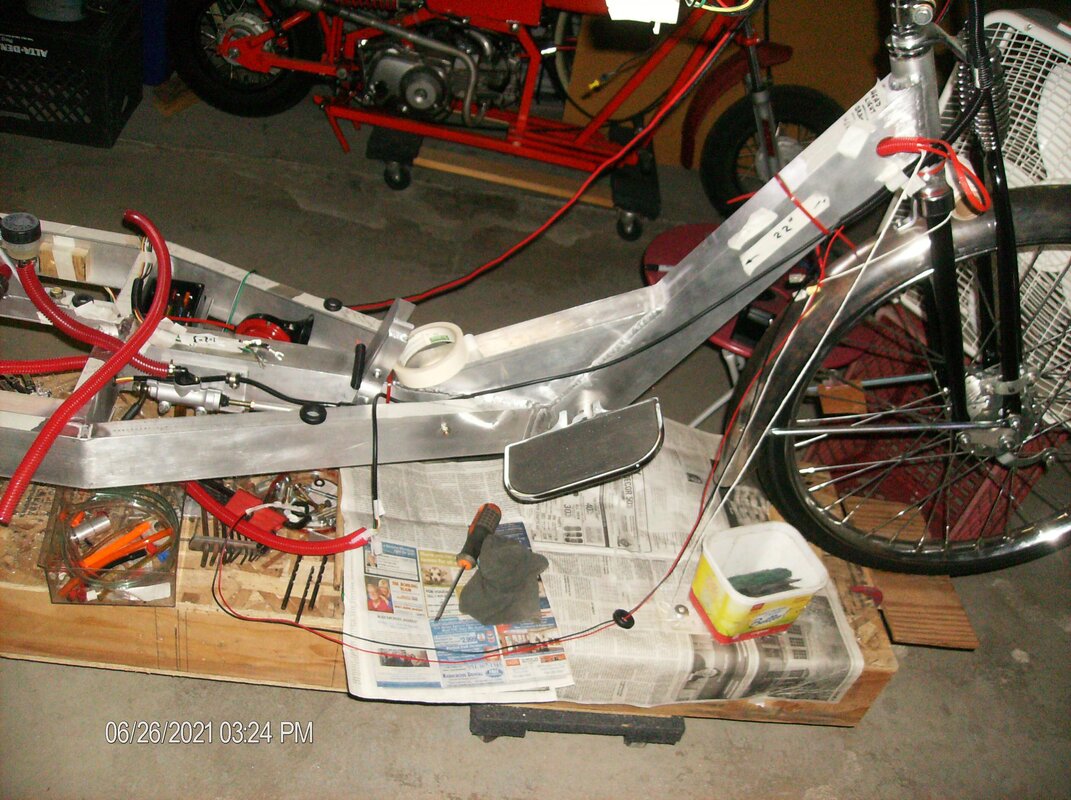

Wiring

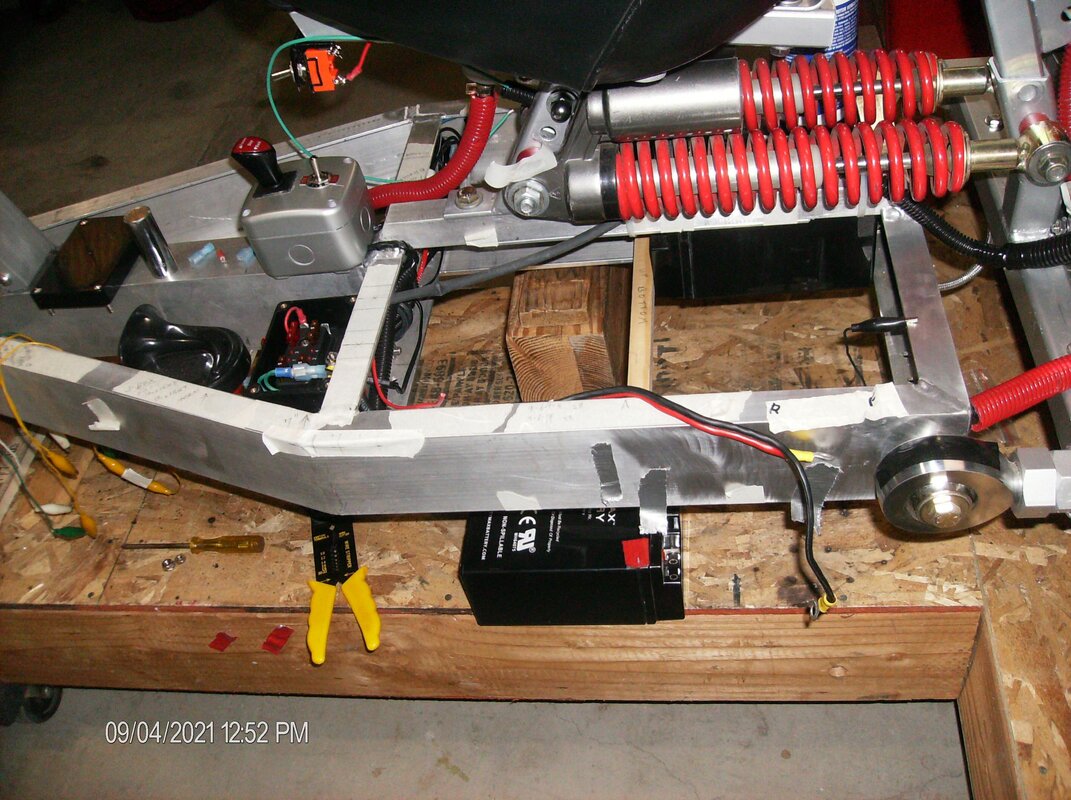

Handlebar wiring, grommet hole in frame,

-

After their journey through the frame I tested each one before going further. Distant neighbor stopped by and said all my projects looked great and this eTrike is his favorite, he asked the price when finished so I told him $3K, and he said that was cheap with all the custom work !!! And he told his wife he wanted it and we'll talk later, YEA! :clapping:



[TomyJ]

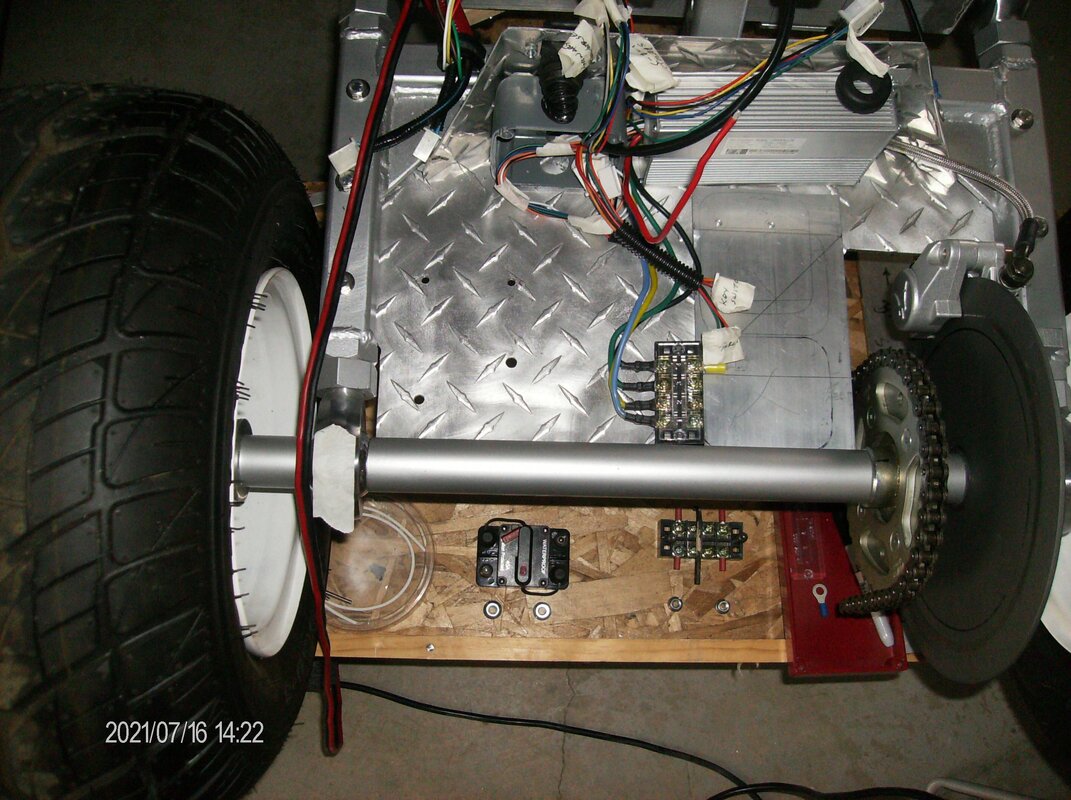

J-Box3 wiring

J-Box3, 60 amp breaker and terminal bar wiring, finish soon, :gah:



[TomyJ]

J-Box3

--Mounting the J-Box3 with Main circuit breaker and Terminal bar inside and all is square to the swing arm, -:clapping:



[TomyJ]

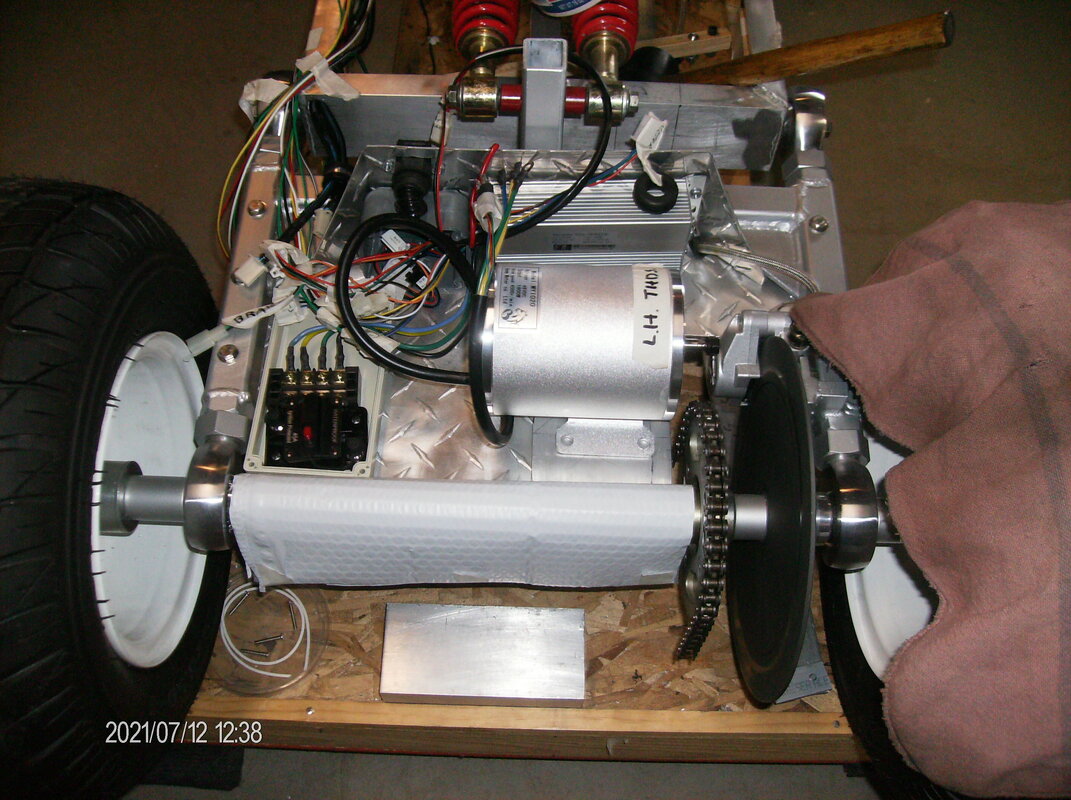

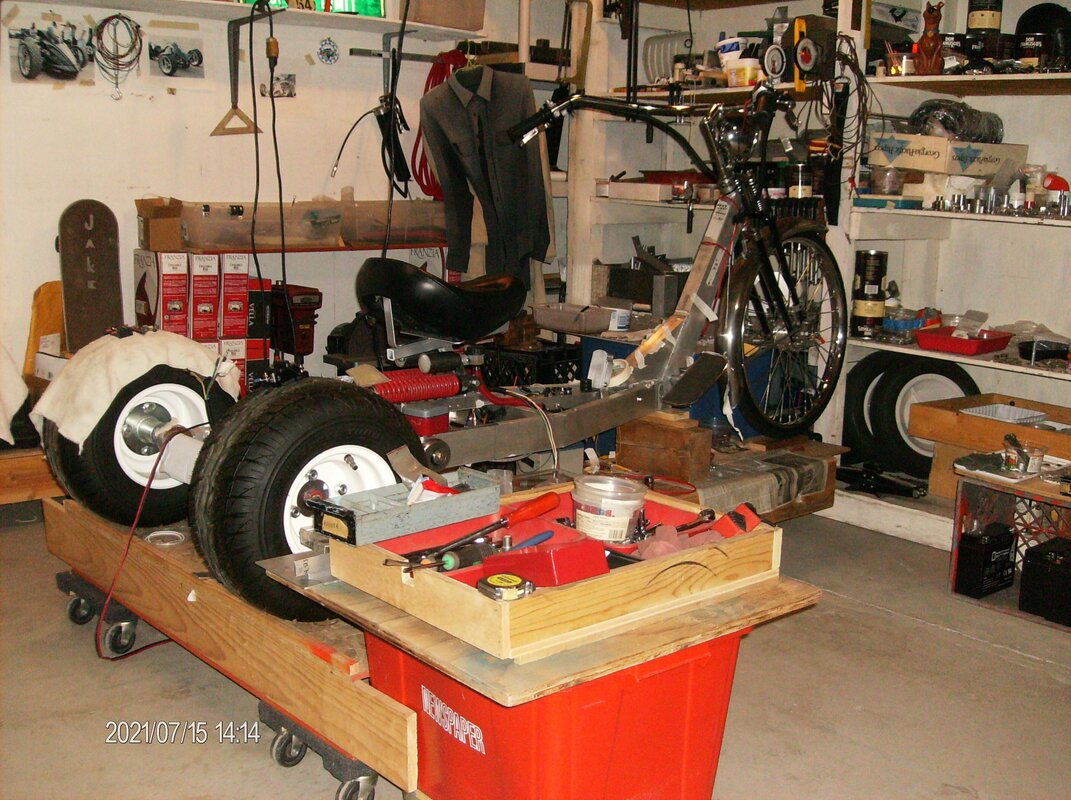

Motor Location

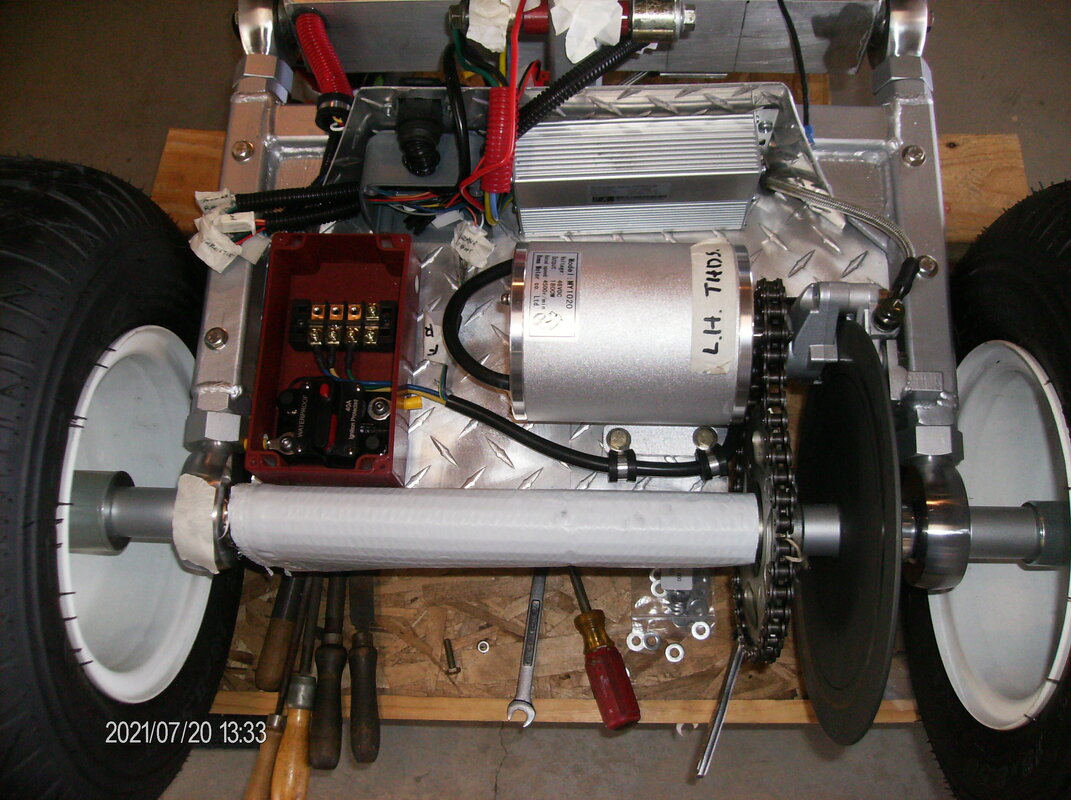

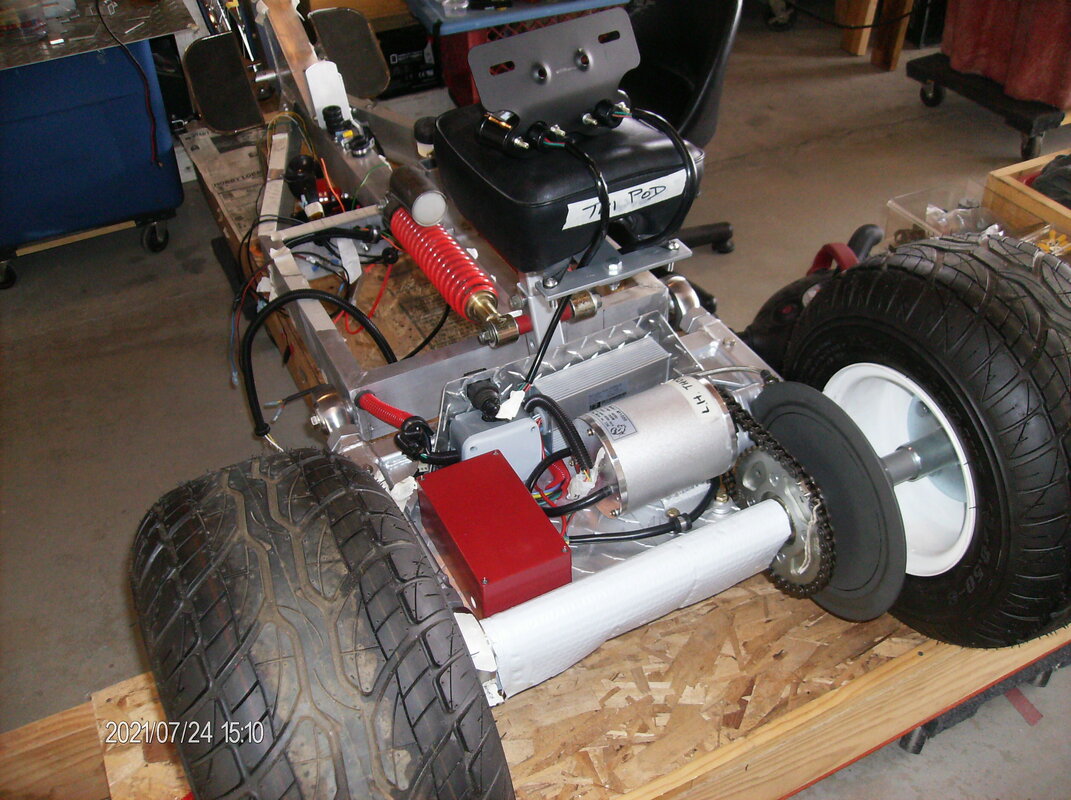

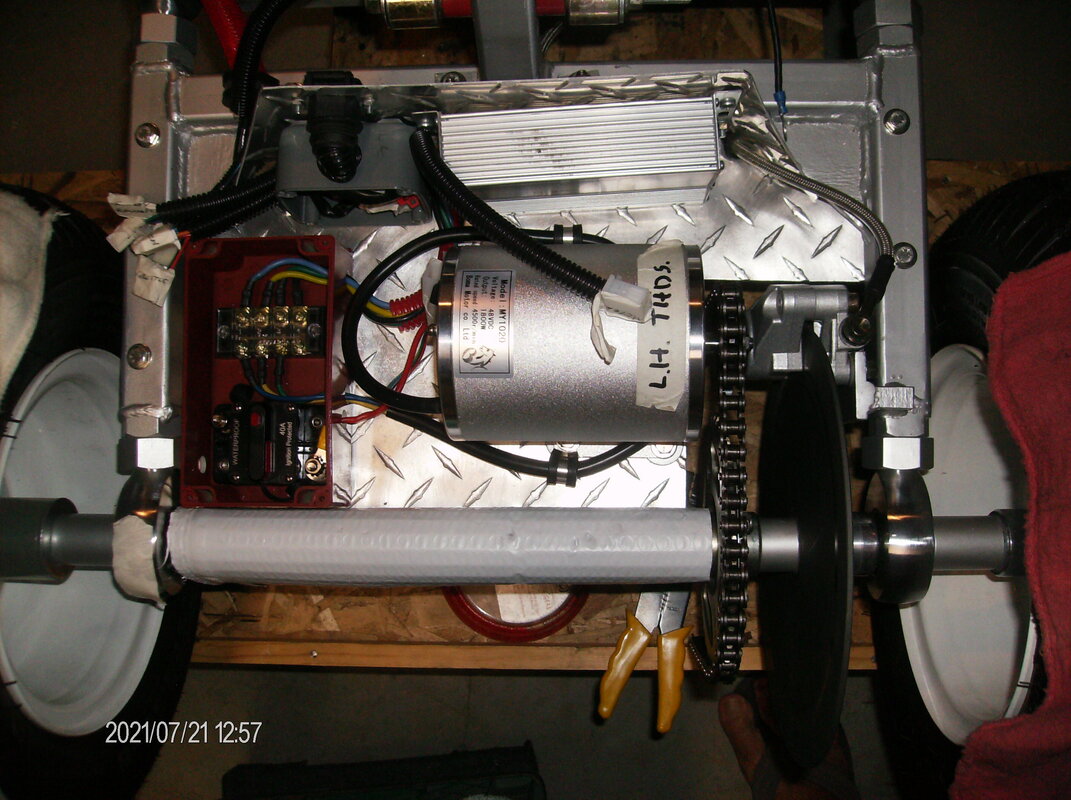

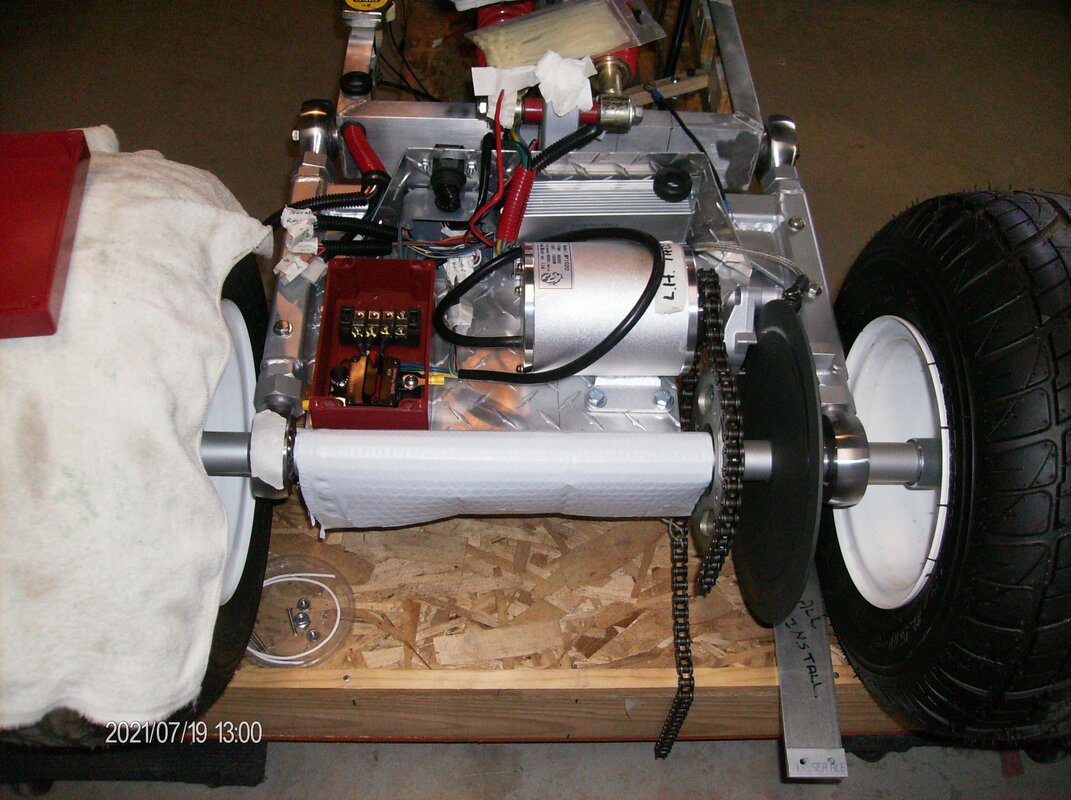

Motor location and chain alignment Steel plate .312/.250, drawing to machinist for chain adjustment grooves, Ordered the master link, :Coffee:



[TomyJ]

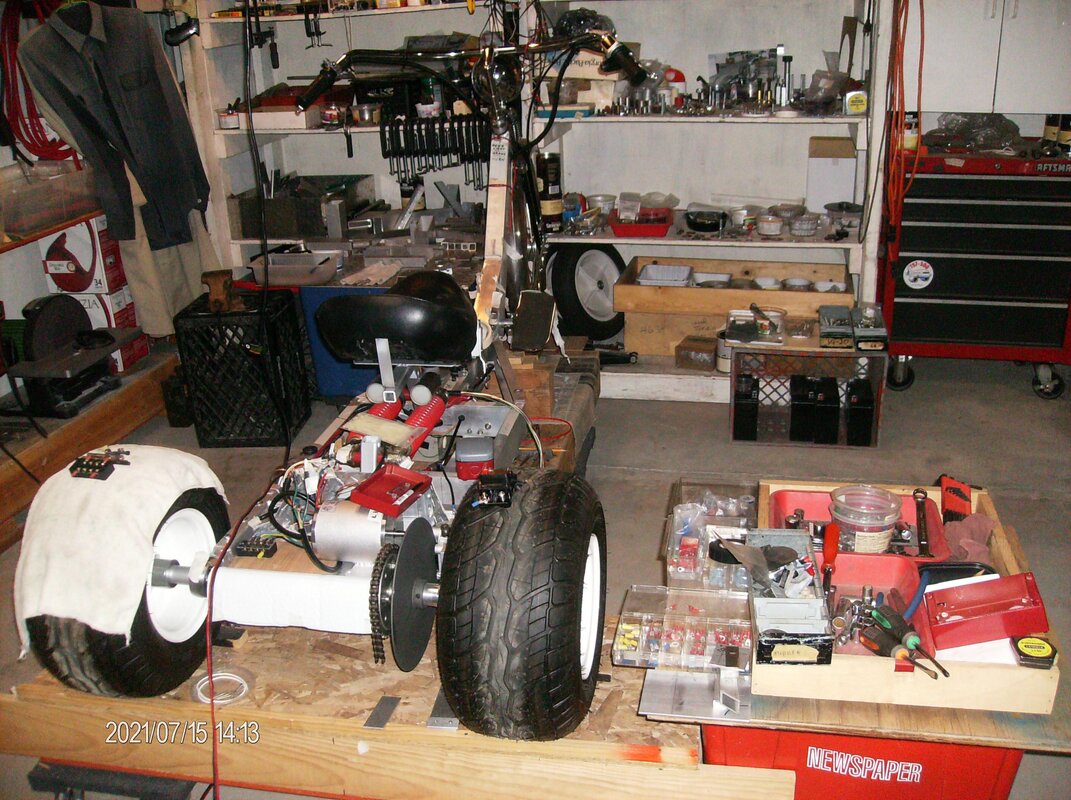

Mock up

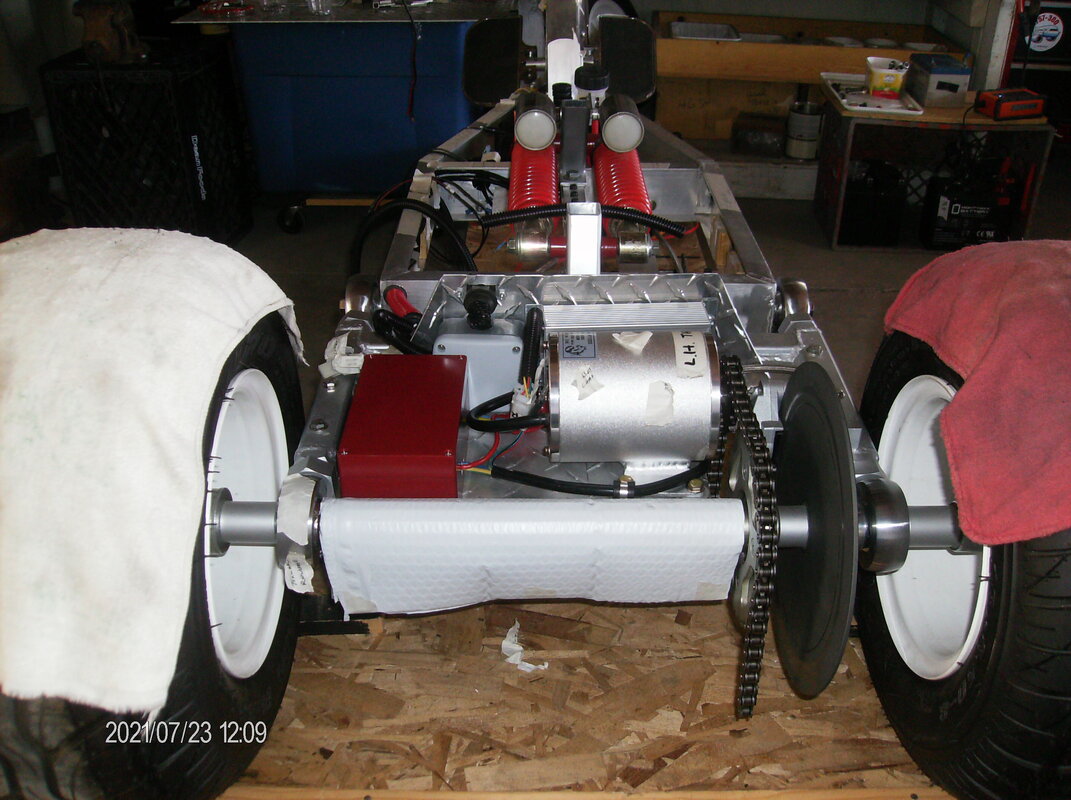

2021-07-20-2021-07-212021-07-23- J-Box covers are on, More mock up, and waiting for the master link...:clapping:



[TomyJ]

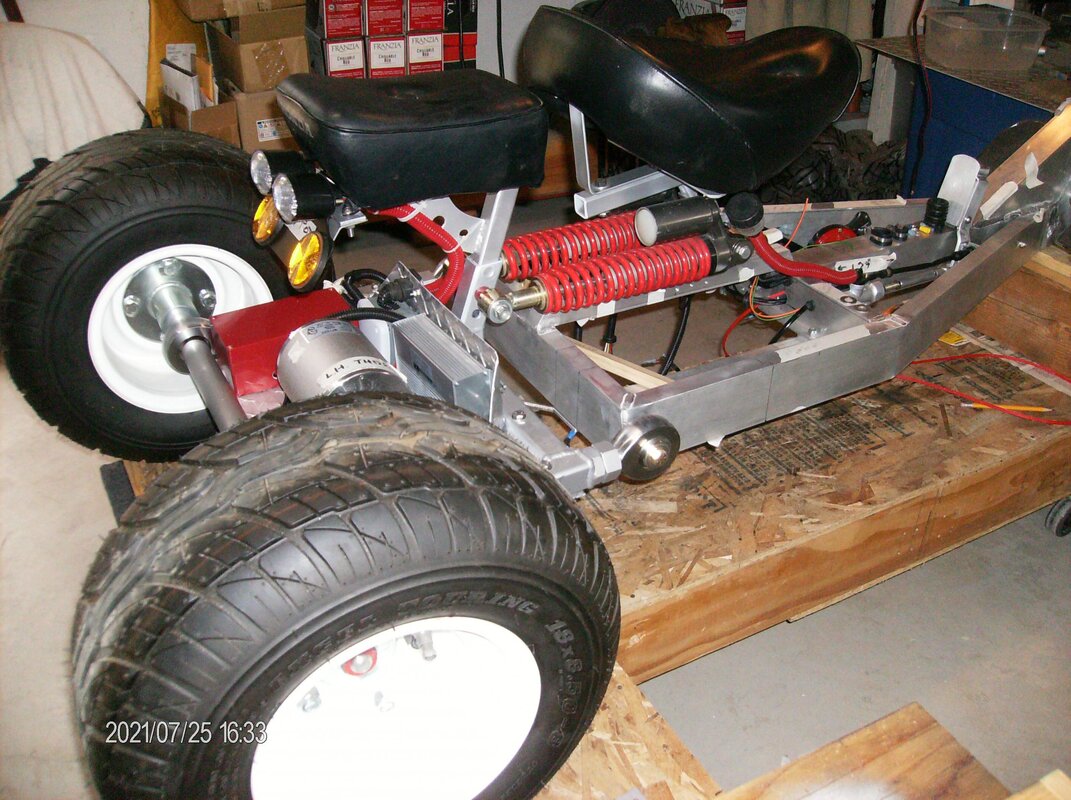

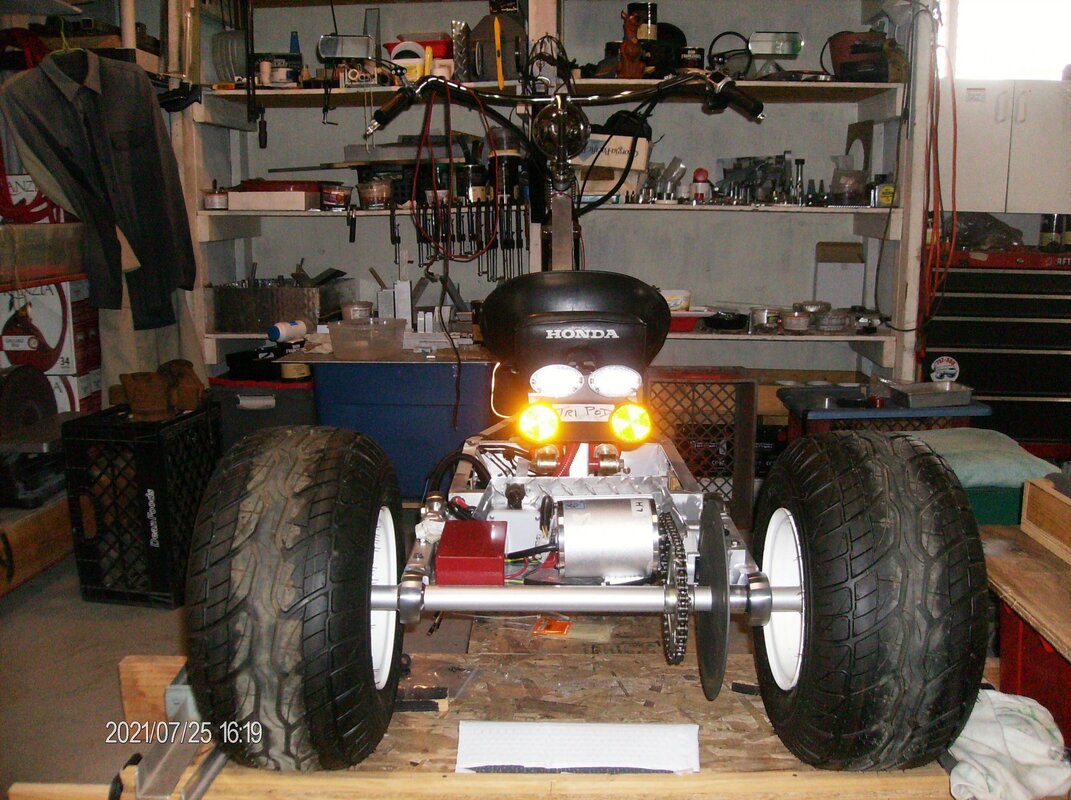

Master Link



Master Link and chain completed, Painting the tail light (LED) bracket that will bolt to the rear seat bottom-

-

Even the lights have reflectors, And I think the rear reflectors are suppose to be red?epper:



[TomyJ]

HornTime

-Horn Time- This was suppose to be easy,:gah:



[TomyJ]

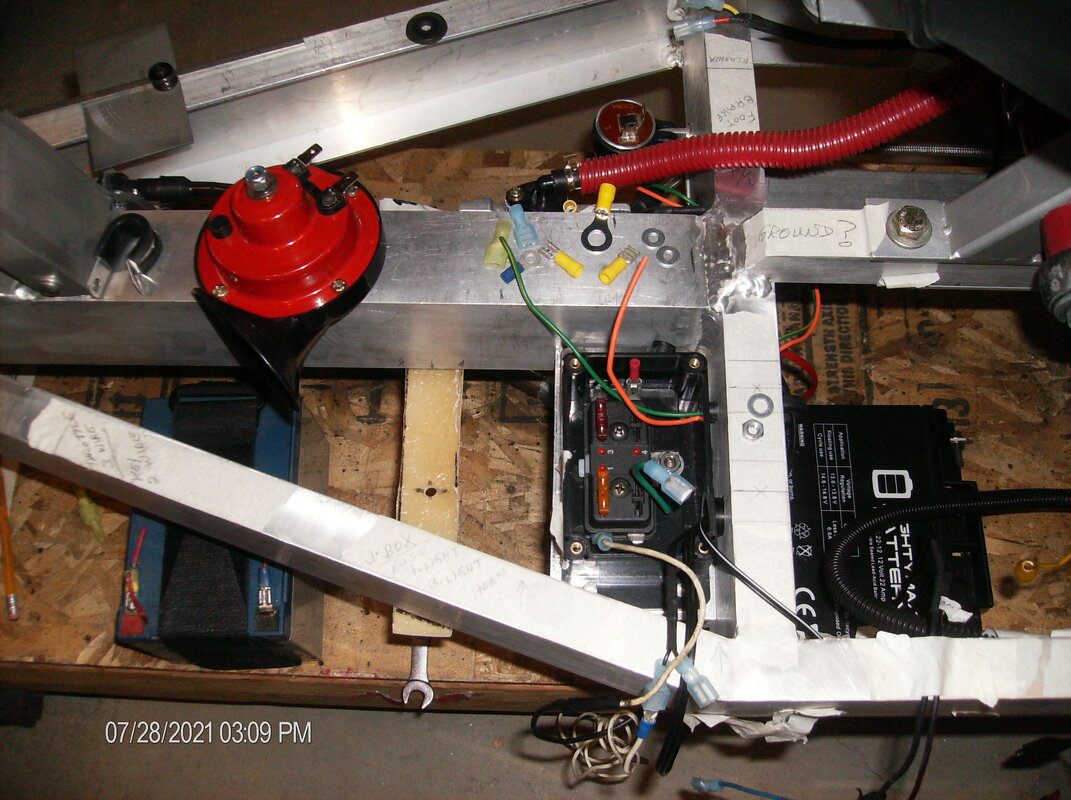

Damn Horn



Damn Horn,:gah: Will not work with metal bracket (second one) So I cut a piece fiberglass off the left overs from the fender and mounted the horn to it in the center, (works,:clapping So now to mount it up and wire it. epper:



[TomyJ]

Pedestal

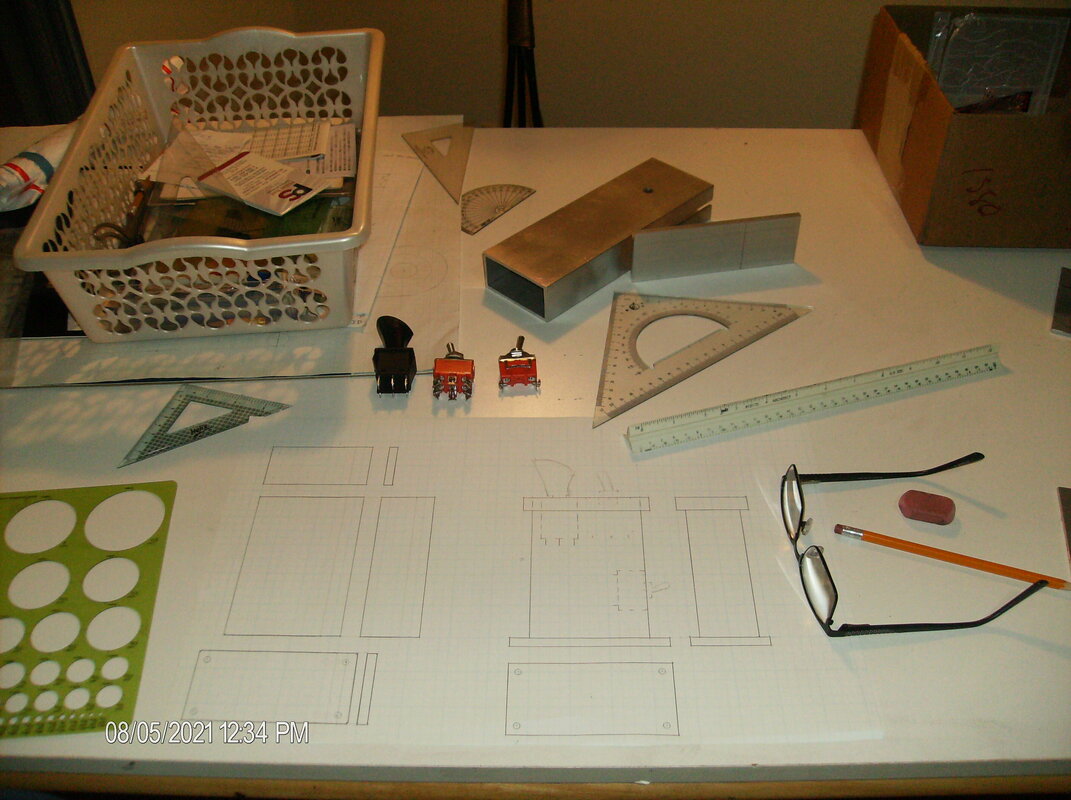

Drawing and working on the pedestal mount for the 3 switches, 1.Forward-brake-Reverse. 2. Speed 1-2-3, 3. Lights-Brake lever and foot, Flashing- Tail- Headlight...EDIT:



[TomyJ]

Directions

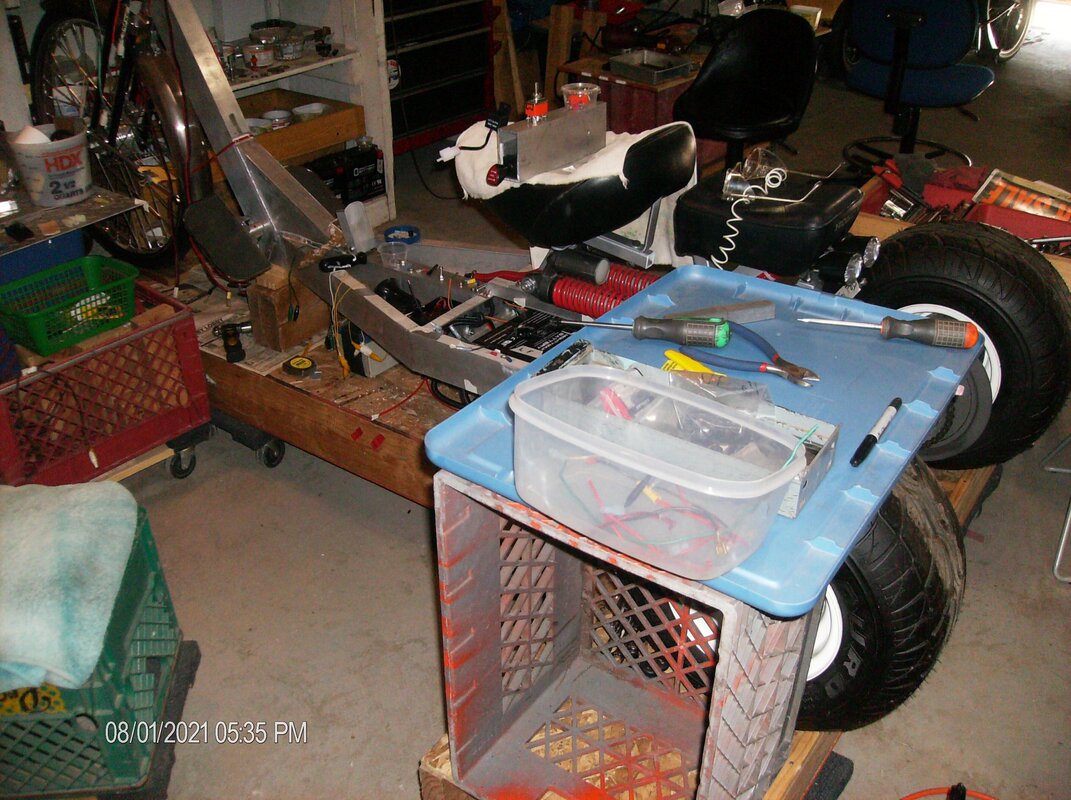

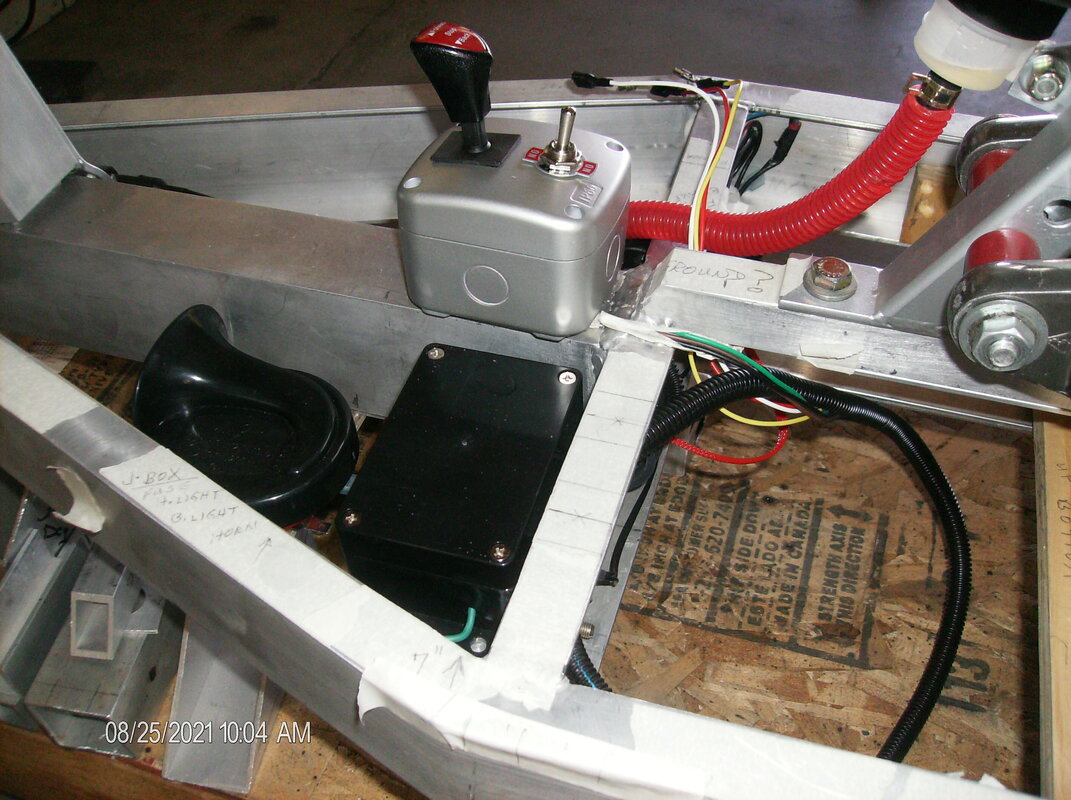

Hi guy's long time running, smashed my big toe really good 2 weeks on the sofa (drawings time) did not want to go through the process of Aluminum Rec tubing so I doug out the extra J-Box and mounted the forward-Reverse lever and the Speed 1-2-3 and for now I'll wait on the lights, just the horn and maybe the flashing tail lights. These projects are up for sale because the rents here are going crazy high so I'm going to try and buy one of those SmallHouses and add he-shed/carport? and rent space or buy?



[trikeman]

Glad you’re back. Good luck house shopping. :wave4:



[TomyJ]

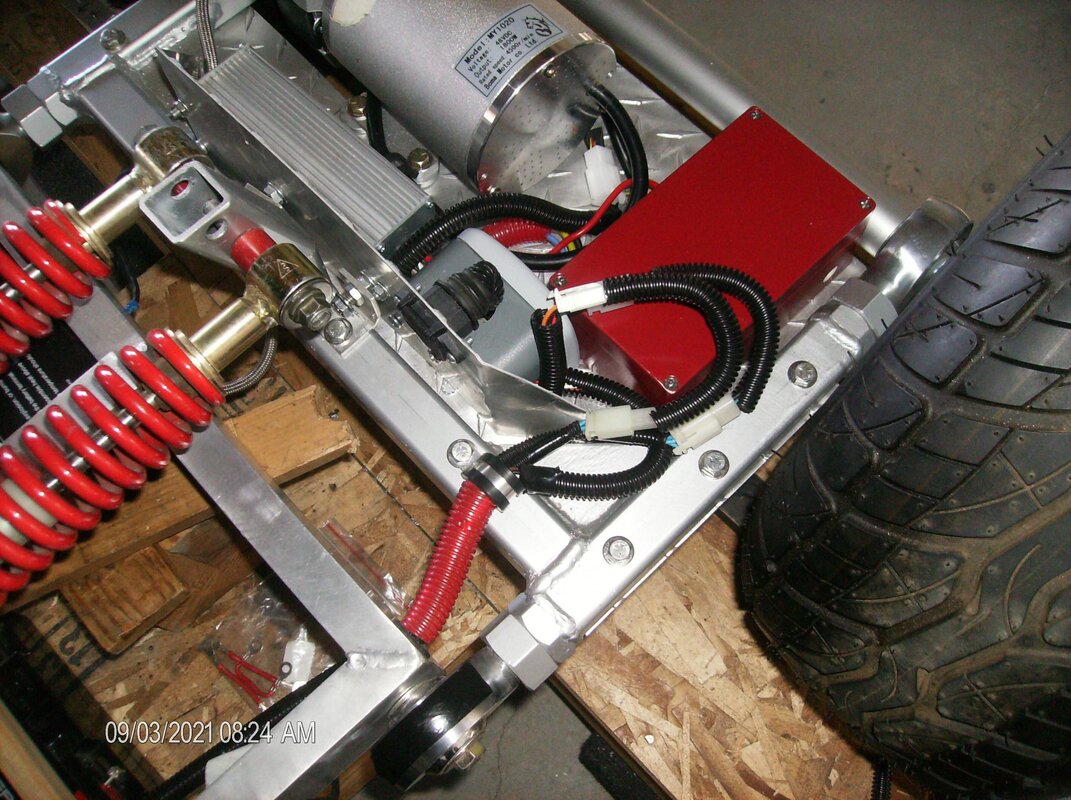

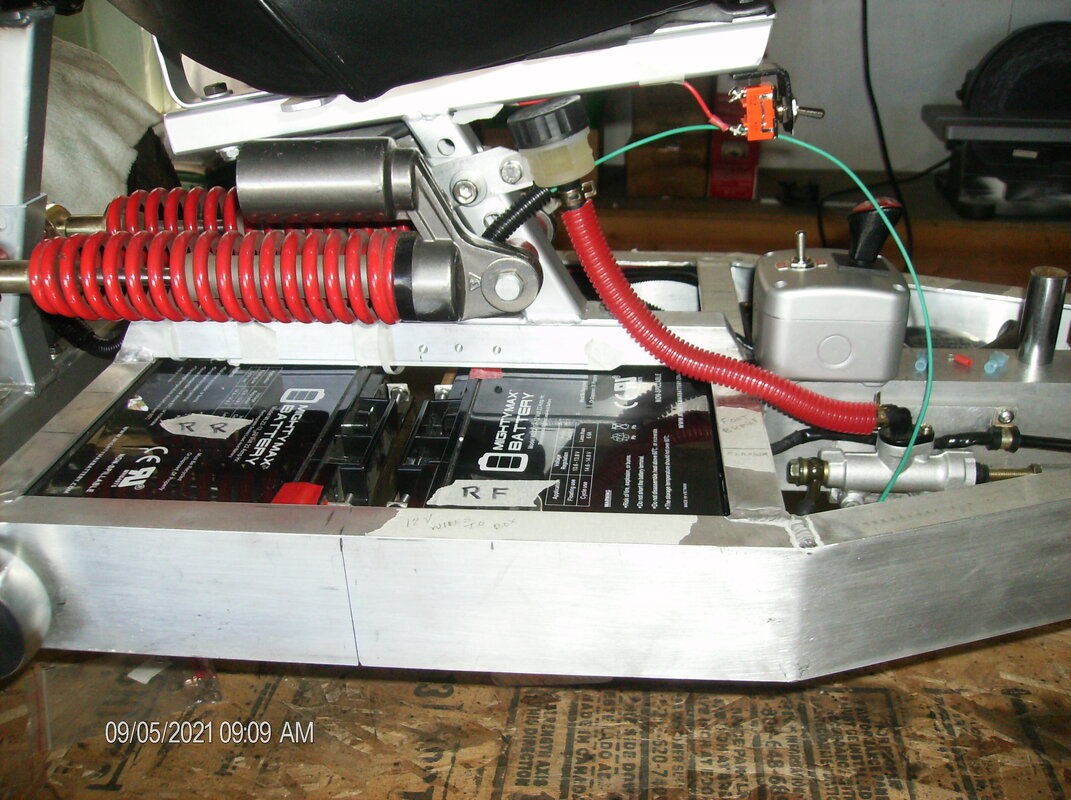

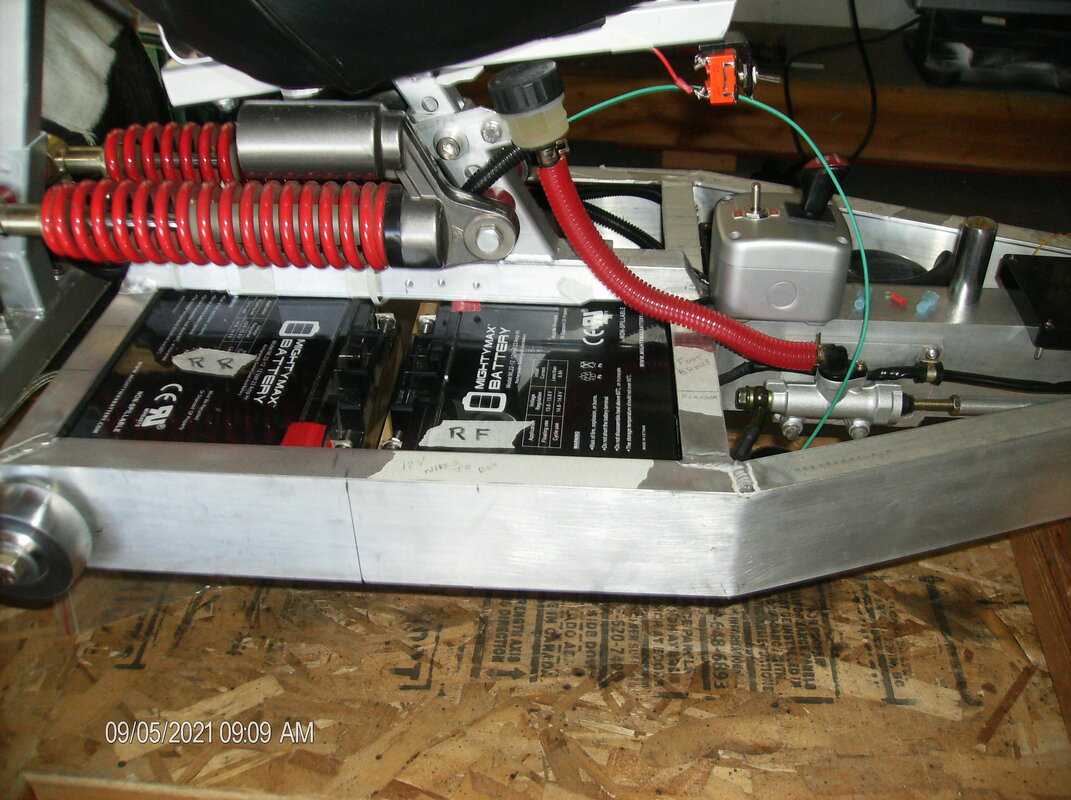

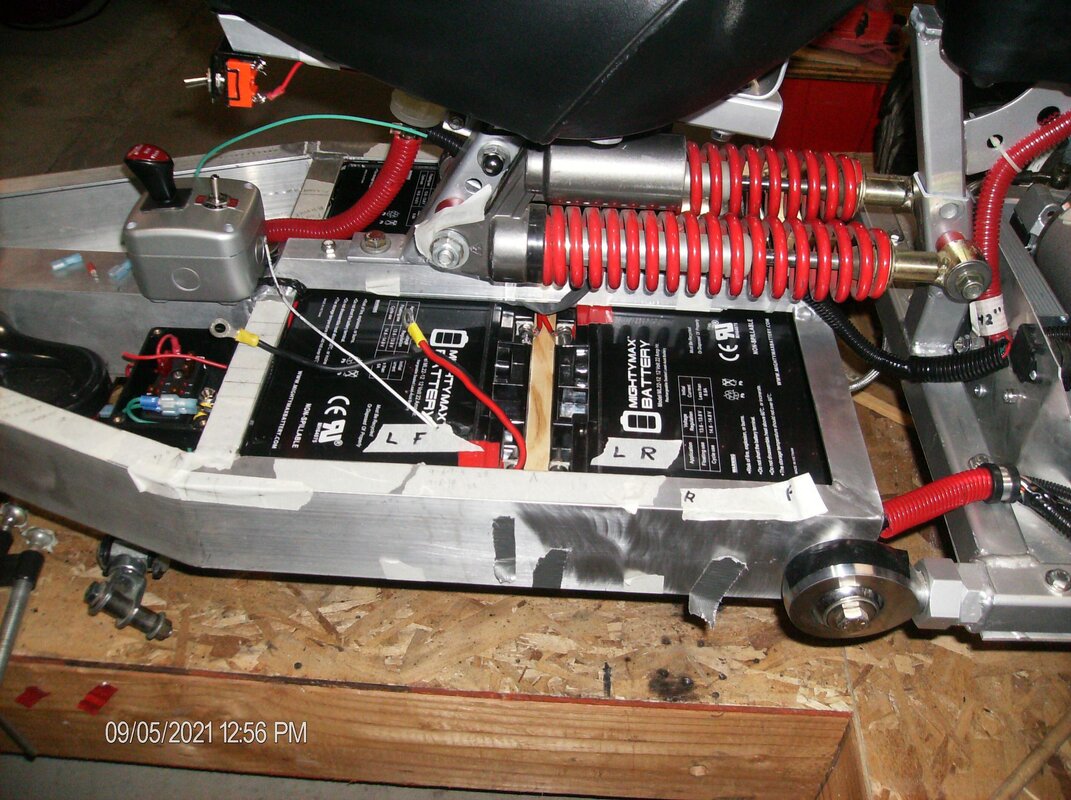

Batt and wires

---I still hate wires, :gah:
