Rebel RT

[grandpanystrom61]

my wheels center line is 12.5 inchs of the ground and the seat is 1.5 to 2 inch's above that, so me the rider should be sitting at 13.5 to 14 inch's off the ground and a inch or two above wheel center line. Ed Roth designed trike. Interesting



[TomyJ]

my wheels center line is 12.5 inchs of the ground and the seat is 1.5 to 2 inch's above that, so me the rider should be sitting at 13.5 to 14 inch's off the ground and a inch or two above wheel center line. Ed Roth designed trike. Interesting

Am I reading this right? You have a Roth trike? Wow so lucky, I met the man 3 times and what a wonderful person, he made me think auto styling...



[grandpanystrom61]

I bought the trike from my neighbor, believe this the trike was her mothers, guess she had boyfriends that built it for her, so the story went.

Never met ED, but his design looks good, man that would be awesome to spend time chatting.

He was given the patent in 1973, and my trike was registered in NV in 1976, and this makes me wonder about things and have questions, so a sit down with the past would be a blast for me.

Hope all the best, ride safe.



[TomyJ]

I bought the trike from my neighbor, believe this the trike was her mothers, guess she had boyfriends that built it for her, so the story went. Never met ED, but his design looks good, man that would be awesome to spend time chatting. He was given the patent in 1973, and my trike was registered in NV in 1976, and this makes me wonder about things and have questions, so a sit down with the past would be a blast for me.Hope all the best, ride safe.

Have you seen my Tri-Muter Trike? Photo's under "Post your VW trike pictures" page 22 photo 269



[TomyJ]

RebelRouser

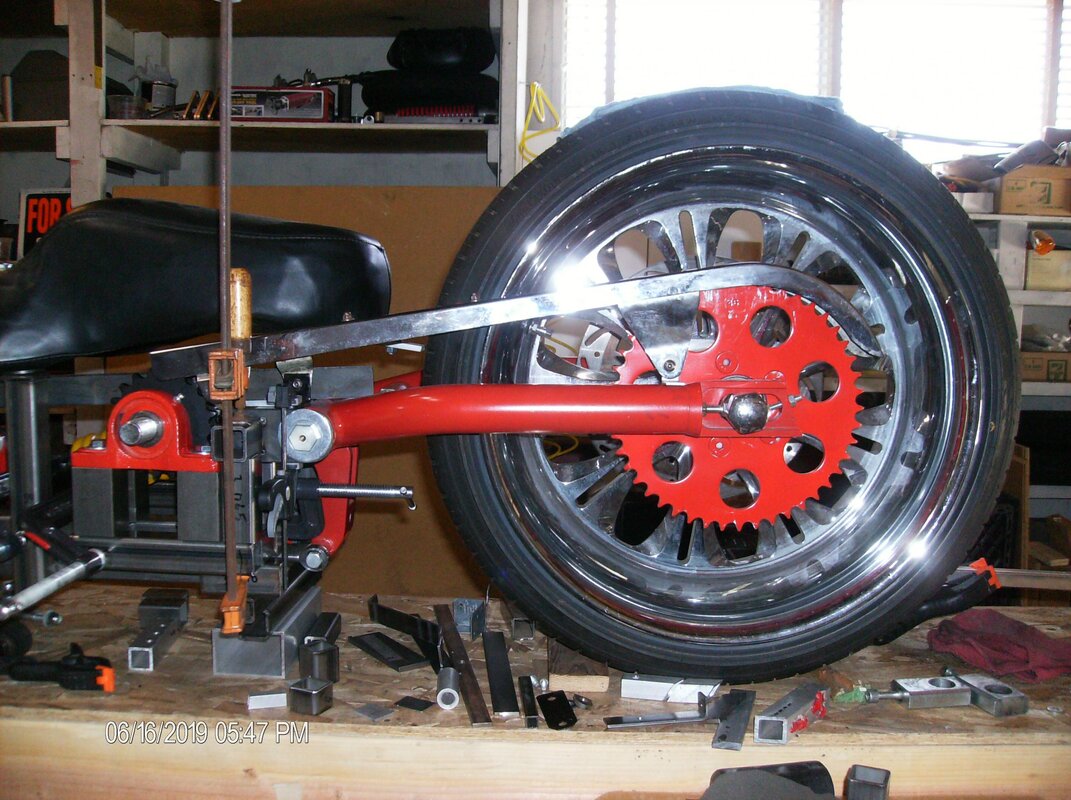

I am not happy with the upper frame rails being 19" wide and the seat less? floor boards? But the engine is 16.5" wide? SOOOOO!!! I think it's time to set the engine and do a work around after the front control arm upper rails are finished, I should take a upper photo of seat and rails. Mocked up the gas tank brace and tie end for the rear engine mount and seat...​



[TomyJ]

RebelRouser

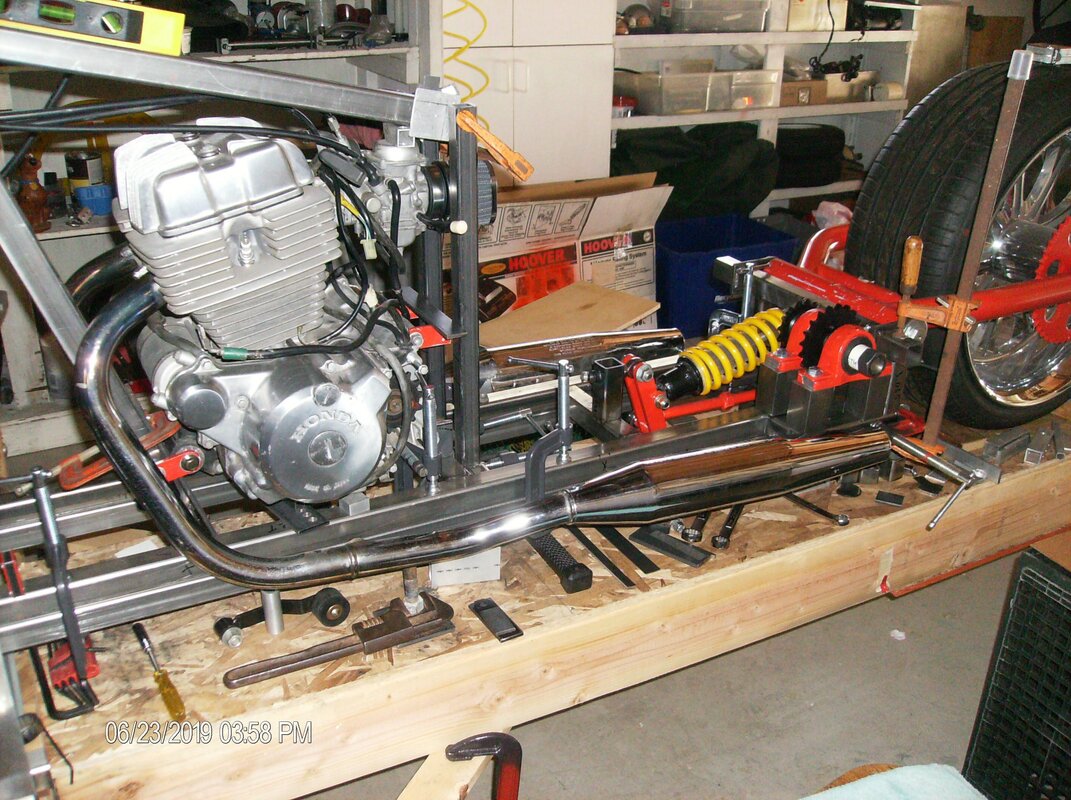

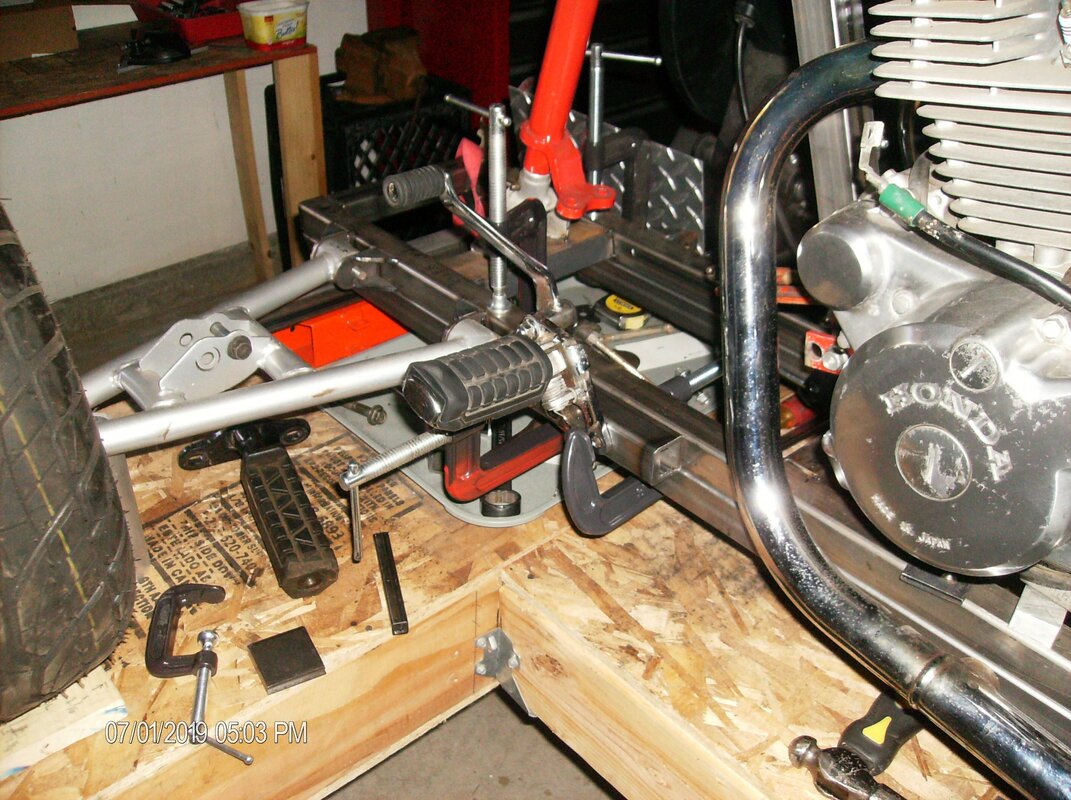

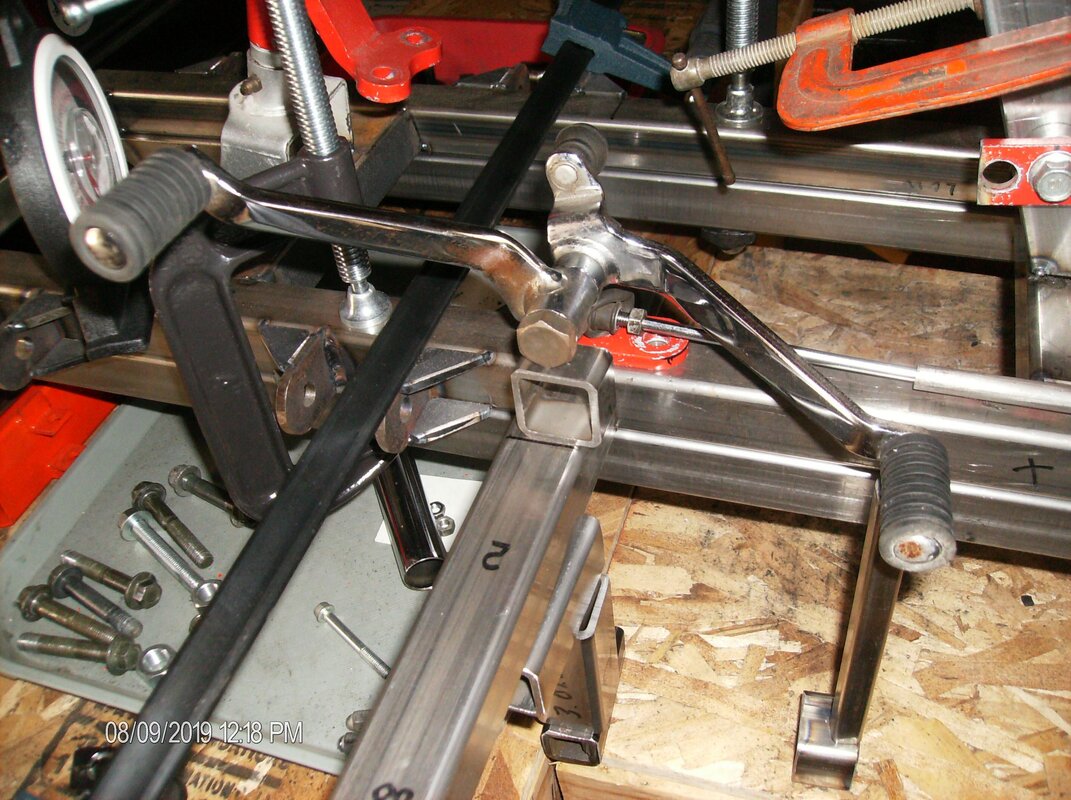

Mock up, took out the wide frame rails and doubled up on the lower rails, foot pegs? floor boards? right side control arms, coil over...



[TomyJ]

RebelRouser

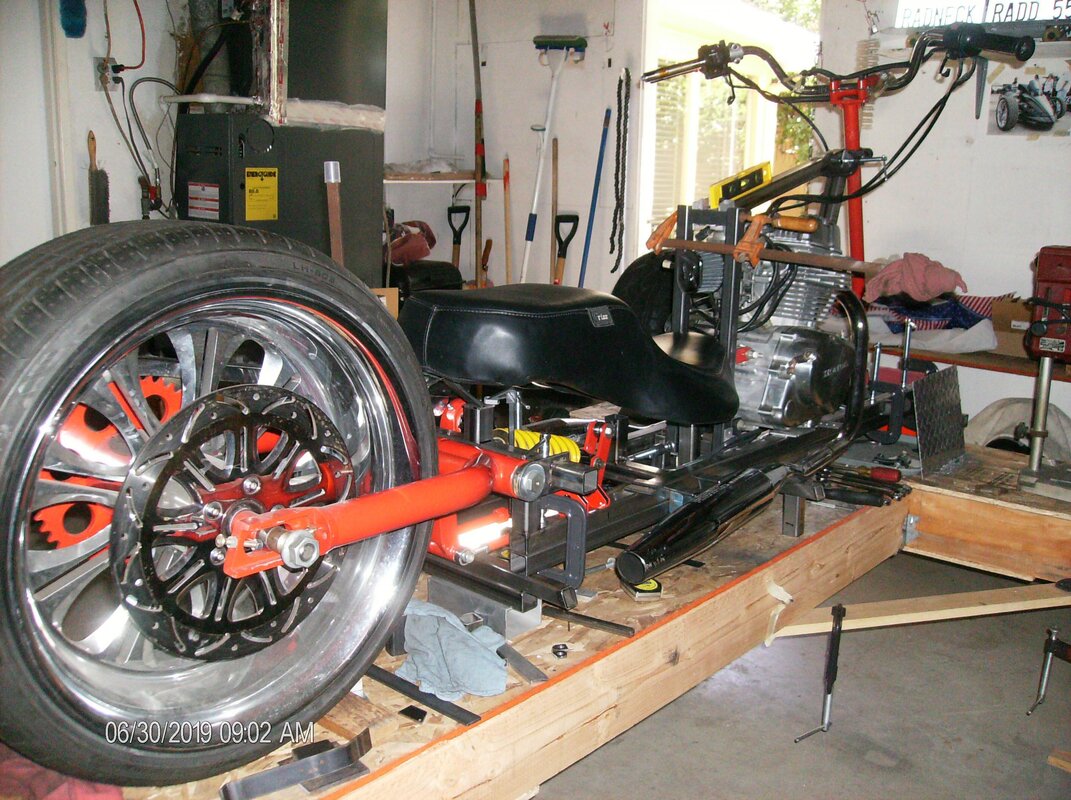

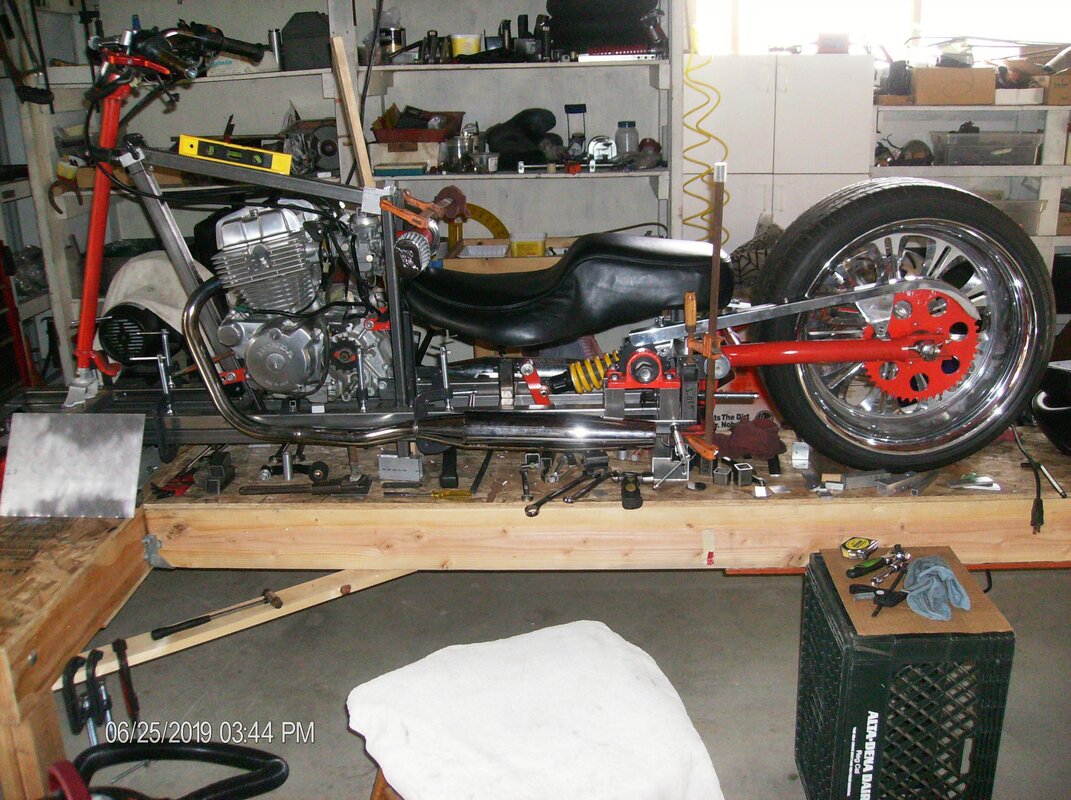

Wife likes this seat better (wider) Lowered the ride height .5 to see the change in toe in-out and brackets for the front coil overs, I need them to be adjustable, the shocks are not, so maybe inboard?



[grandpanystrom61]

I too like the one long seat compared to the two piece seat. I hope all works out for it.



[TomyJ]

RebelRouser

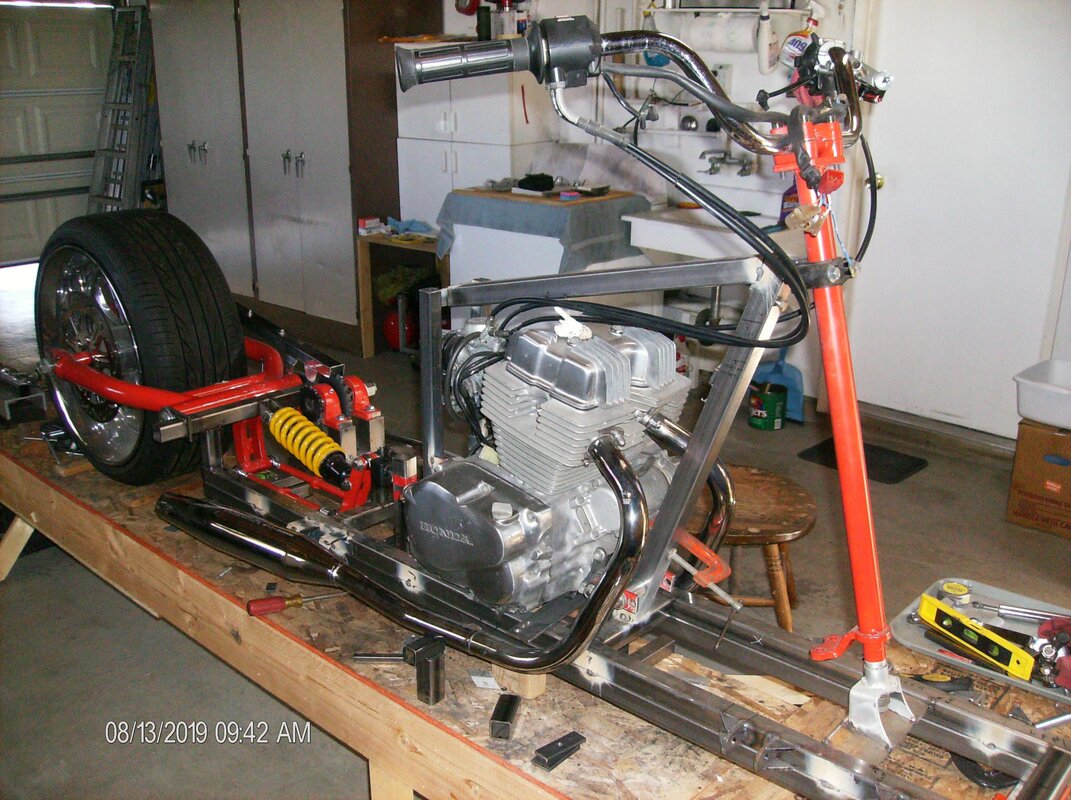

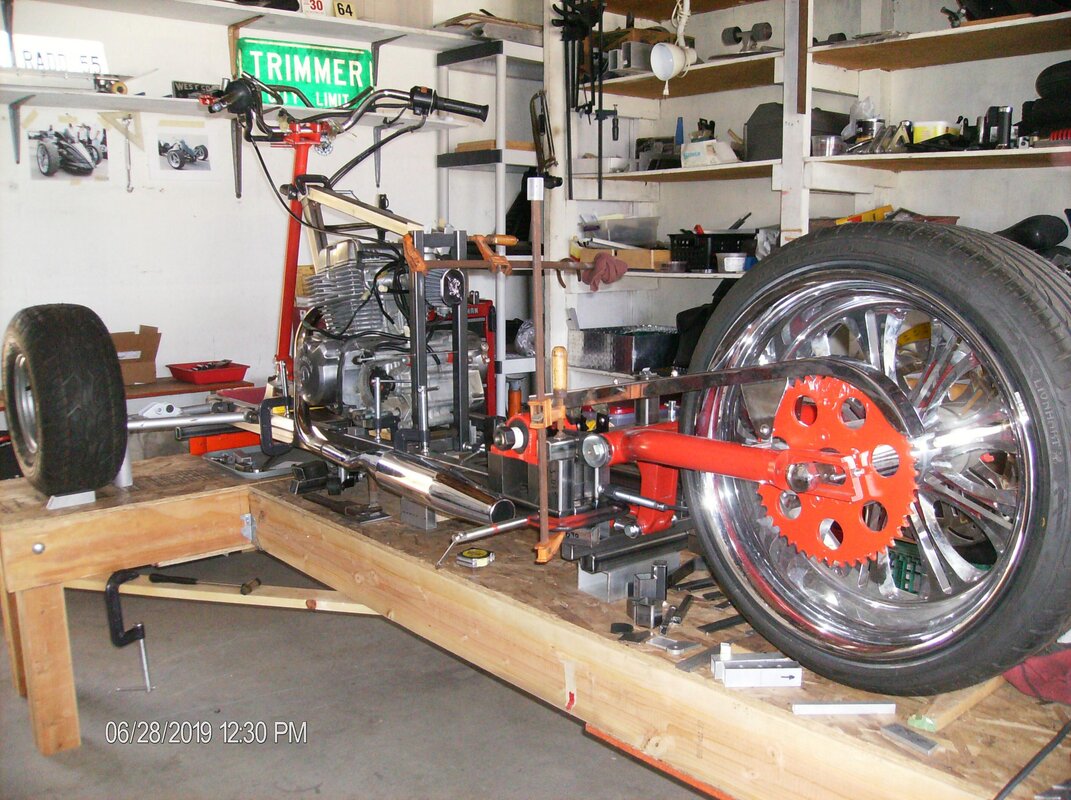

I am starting to like this look much better, need to lean the steering back some, but that brace is also the front engine mount, more mock up...



[LarryA]

:LooksGreat:Taking shape and looking good!



[FuzzyWuzHe]

+1



[grandpanystrom61]

if the brace has to stay because of the engine, well why not bring back the steering bracket back on angle with the handle bar design ?I thought it looked upright to much to me, but I have not designed such a project, so I just watch and learn as I can. I could be wrong, but should we finish out the enegine and all that in the mock up so you can see it all, than look at the handle bar design. Your game, just a fan in the stands, LOL.



[TomyJ]

RebelRouser

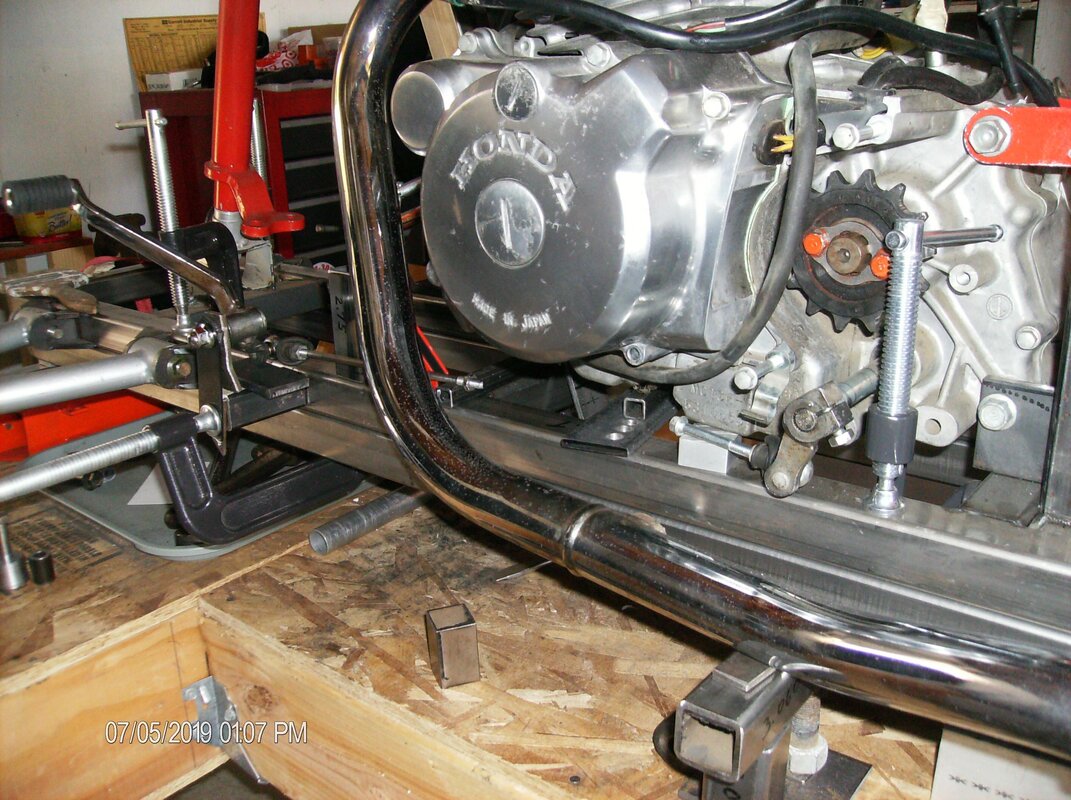

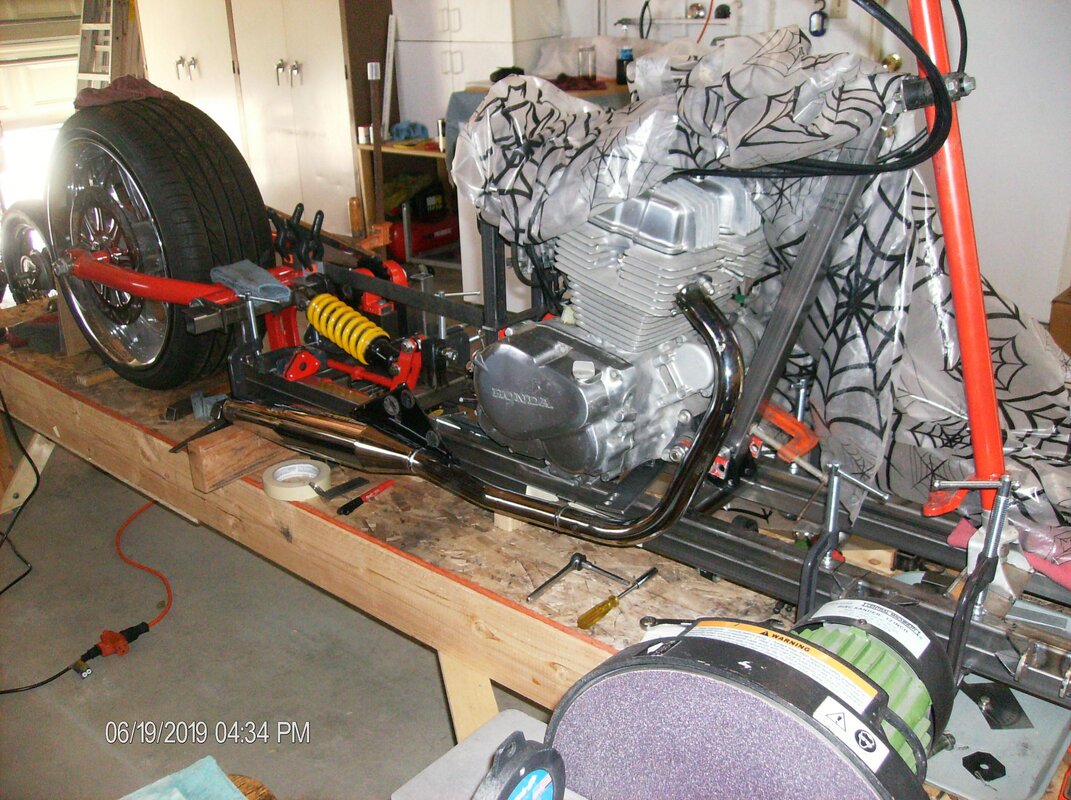

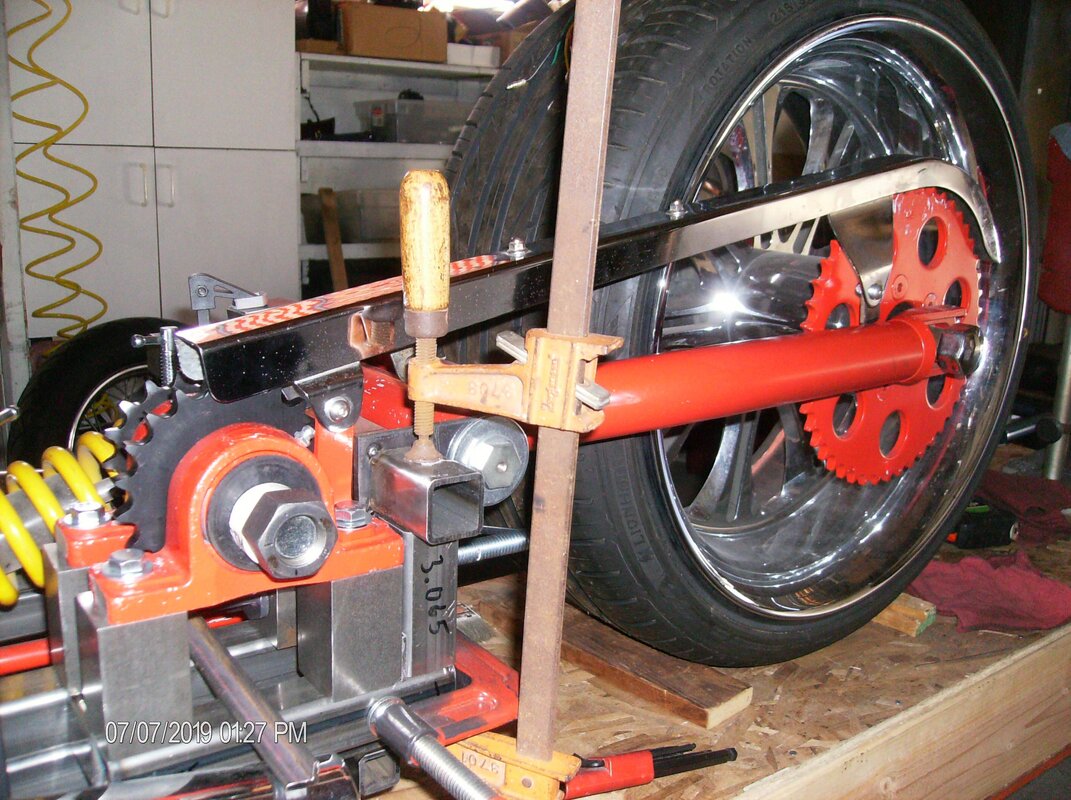

Adjustable shock mounts and lowered the steering mount to meet the gas tank cross brace, will tilt it back later for G.T. height...



[TomyJ]

RebelRouser

thinking of this tank???



[LarryA]

2nd what Andy said, but I see now that you will tilt the bars back.....am I seeing foot pegs on the side shown? first glance I thought feet would be ahead of the shocks...lol that tank will give a nice touch! good progress.



[TomyJ]

RebelRouser

OK! boys and girls guess what time it is??? NO! FuzzMan not Howdy Dowdy time,



[grandpanystrom61]

I know, I know what time it is! Time to see about an engine fitting into the new area ?Or is it, Spring has sprung and the sun is out and so it is Ride Time ?I love to ride.



[TomyJ]

RebelRouser

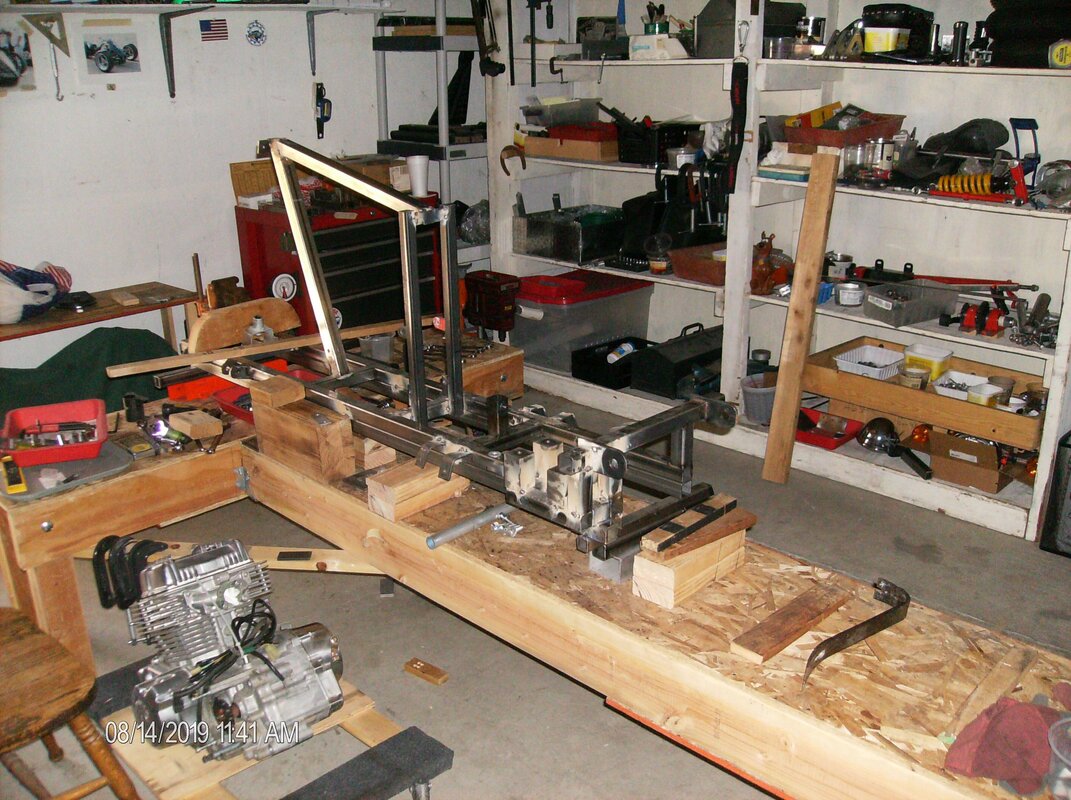

Problems with the work table, Boy did I spank it good...:clapping:​



[TomyJ]

RebelRouser

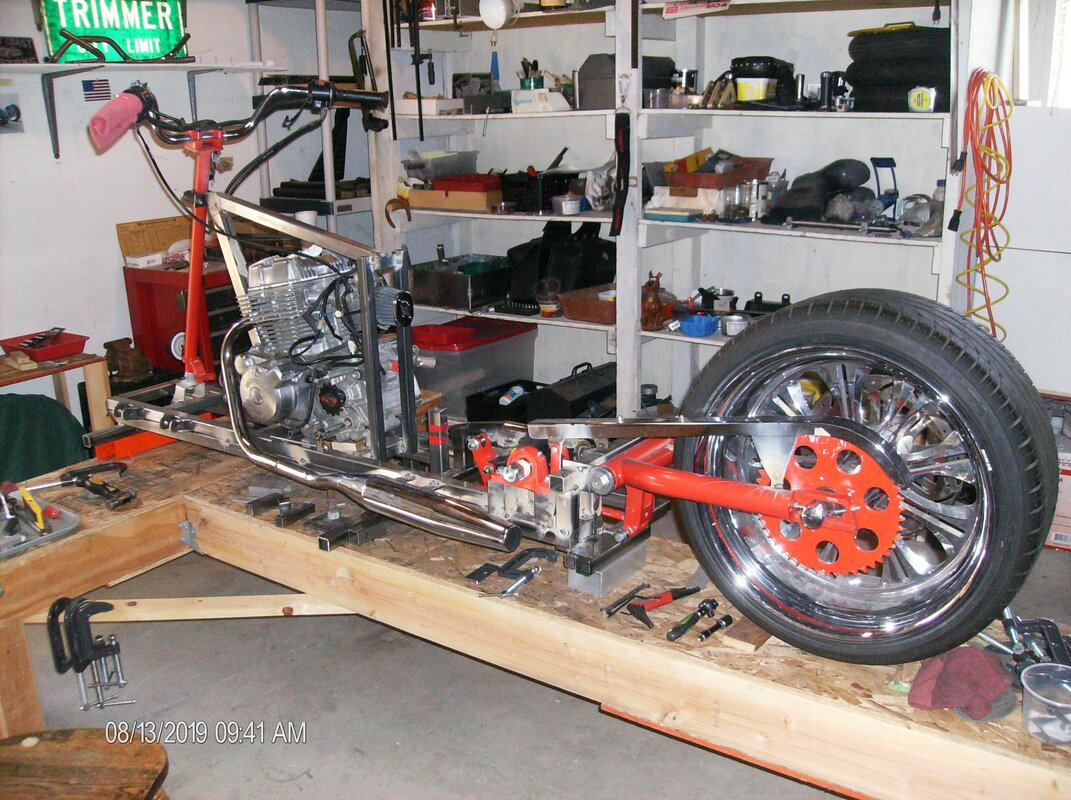

Lowered the tank 1" to clear the handlebars in turns, but still in mock up and fitment seems to be working ok, I have the doner bike for measurements... Tomorrow I will on the uprights for the control arms, 20 degrees. Nice azz huh?



[TomyJ]

RebelRouser

I think the angle will look better and hold control arm dimensions, Then I started playing with a possible nose piece? I still like this one? Maybe I'll try some cardboard patterns???
