Changing Triglide Transmission Sprocket

[Rollin Thunder]

I've wanted to know how these heavy trikes were getting off the line. Now I know just by reading the INFO on here. Sometimes its better not to ask and just read. WHEN I can get my 1st Trike. Depending on the yr. That will be the 1st thing I do to it. This site is awesome with all the info that all of you supply! Thanks Rick ThumbUp



[msocko3]

I've wanted to know how these heavy trikes were getting off the line. Now I know just by reading the INFO on here. Sometimes its better not to ask and just read. WHEN I can get my 1st Trike. Depending on the yr. That will be the 1st thing I do to it. This site is awesome with all the info that all of you supply! Thanks Rick ThumbUp

If you get a 2011 and later you'll be ahead of the game because HD changed the transmission sprocket to a 30 tooth starting with the 2011 MY. The folks who have the 09 - 10 Triglide have the 32 tooth and IMO a disadvantage. When I swapped the 32 tooth to the 30 on both mine and my dads Triglides it was night and day difference, very much improved.



[Mr.Wizard]

To get off the line you need off the line snatch and grab.

Stock TG clutch won't do it. Think upgrade and put the torque to the rear wheel.

Now here comes the... But

If you change a nut on a Harley you will have to change the bolt and washer along with it. (being cryptic)


If you change the clutch to a racing style clutch then the TQ not only hits the rear wheel but it hits the compensator and the crank when the compensator get's worn.

Domino effect one might say.



[hocnsoc]

Excellent instructions and photos. Information exchanged cleared things up for me.<br />
<br />
Hopefully, the bank and I will own a Trike very soon.



[bobknife]

Ive had 5 basket cases and got them all running but im not sure i would attempt this to technical for me the old harleys were so much easier to work on you done a great job with pics and technical commentary this site is great for information and advise



[msocko3]

Ive had 5 basket cases and got them all running but im not sure i would attempt this to technical for me the old harleys were so much easier to work on you done a great job with pics and technical commentary this site is great for information and advise

Thank you, one of the things I'm a big believer in is the sharing of information and experience is what a good forum is all about. IMO Trike Talk is as good as it gets, the moderators, admin and members are tops in my book.



[francis fuller]

bigrig52 I have a 06 ultra with a 5 speed. will this change my rpm a lot



[francis fuller]

francis fuller I have a ultra 06 trike with a 5 speed. will this change my rpm alot



[msocko3]

francis fuller I have a ultra 06 trike with a 5 speed. will this change my rpm alot

With the 06 it will rise your RPM, right now your final drive ratio is the same as a 30 tooth equipped triglide. If you wanted to do something else you could change the primary gear ratio from the present 3.15 to a 3.37, this will raise your rpm a couple hundred.



[rider1234us]

great article. i have another train of thought , why not change the engine sprocket instead? i don't know what all the sprocket specs are on tg's but on my 01 ultra they are 24/37 front 32/70 rear. as my figures come out my bike runs 3200rpm at 70 mph, with a 23 engine sprocket 3385rpm or with a 32 tranny sprocket 3400 rpm, not much dif and a whole lot less work. have a frankenstein kit on mine and and would like more input on this train of thought.



[msocko3]

great article. i have another train of thought , why not change the engine sprocket instead? i don't know what all the sprocket specs are on tg's but on my 01 ultra they are 24/37 front 32/70 rear. as my figures come out my bike runs 3200rpm at 70 mph, with a 23 engine sprocket 3385rpm or with a 32 tranny sprocket 3400 rpm, not much dif and a whole lot less work. have a frankenstein kit on mine and and would like more input on this train of thought.

2007 - present touring has limited options for primary gearing changes. The only options are from Evolution Industries, they have a 49 tooth ring gear which cost around $450 on up or their engine sprocket which I don't recommend because it does away with the compensator which puts more stress on the crankshaft and its splines.



[rider1234us]

2007 - present touring has limited options for primary gearing changes. The only options are from Evolution Industries, they have a 49 tooth ring gear which cost around $450 on up or their engine sprocket which I don't recommend because it does away with the compensator which puts more stress on the crankshaft and its splines.

okay thanks for the info.



[rooster]

2007 - present touring has limited options for primary gearing changes. The only options are from Evolution Industries, they have a 49 tooth ring gear which cost around $450 on up or their engine sprocket which I don't recommend because it does away with the compensator which puts more stress on the crankshaft and its splines.

I have an 07 SEUC. When the comp assembly went bad I was talked into the EVO Industries comp sprocket when I had asked for the then new HD comp assembly. I headed home and at low speeds through town I noticed how easy it took off and the added acceleration. However as soon as I reached 55mph my arms and legs were falling asleep due to a new vibration. So ran it up to 65 and dropped it into 6th gear and the vibration got ugly so went back to 5th. Towed the bike back to the dealer and explained what happened. I will save the rest of the story but the new HD comp assembly was put in and all good again. Moral of story the comp assembly is necessary on these newer HD's.



[msocko3]

I have an 07 SEUC. When the comp assembly went bad I was talked into the EVO Industries comp sprocket when I had asked for the then new HD comp assembly. I headed home and at low speeds through town I noticed how easy it took off and the added acceleration. However as soon as I reached 55mph my arms and legs were falling asleep due to a new vibration. So ran it up to 65 and dropped it into 6th gear and the vibration got ugly so went back to 5th. Towed the bike back to the dealer and explained what happened. I will save the rest of the story but the new HD comp assembly was put in and all good again. Moral of story the comp assembly is necessary on these newer HD's.

Good thing you didn't keep riding it like that, the EVO comp assembly isn't good for a street driven motorcycle or trike unless a person is looking for a reason to replace their crank.



[riderdave]

Just read your post. It is exactly what i was looking for. I had just picked up my motor trike conversion and noticed exactly what you stated. If a 30t makes that much difference, i will have to give it a try.
First thing that went through my mind is that i lost my 103 hotrod. Thanks again



[francis fuller]

I have a 06 5 speed ultra classic trike . can this help my take offt. what is the rpm change. francis fuller



[francis fuller]

with this change from a 315 to a 337 will this help my take off is this a lot of work bigrig52



[msocko3]

with this change from a 315 to a 337 will this help my take off is this a lot of work bigrig52

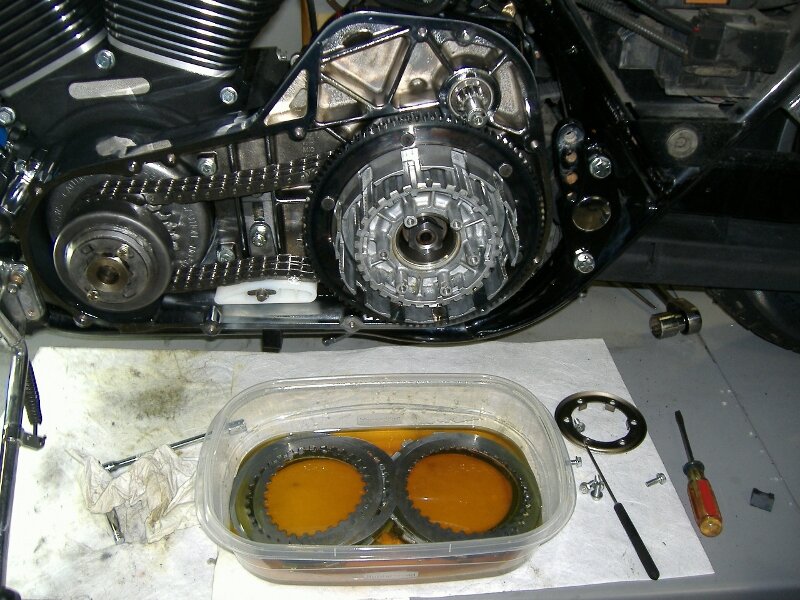

The change from 3.15 to 3.37 would make a difference across the board. The job isn't too terrible if you have the service manual a press and are mechanically inclined. The below 3 pictures of my 06 Ultra Classic will give you an idea of how far apart it will have to come to make the swap.



[riderdave]

Great info, and it will be used. I do have a question though, and i could be wrong but a stock ultra runs 32t front and 66t rear. The 2014 triglides are running 30t front and 70t rear. I wonder if i changed the 66t rear to a 68t, if it accomplish the same thing. Just wondering,...............thanks



[saab9k]

ratio on top line is 2.0625

second line 2.33 ratio, so lower gearing

to 68 rear would be 2.125.

so in the middle



[msocko3]

Great info, and it will be used. I do have a question though, and i could be wrong but a stock ultra runs 32t front and 66t rear. The 2014 triglides are running 30t front and 70t rear. I wonder if i changed the 66t rear to a 68t, if it accomplish the same thing. Just wondering,...............thanks

The 06 Ultra runs a 70 tooth rear and 32 tooth front, final drive in 5th gear is 3.15.



[rider1234us]

has anyone swapped out thier 1 1/2" belt to a 1" or 1 1/8". just ripped my 3rd belt which was heavy duty with 33,000 miles on it, 10,000 on trike, and ripped off the inside rim off the rear sprocket, so am going to replace both pulleys also. 01 ultra classic with frankenstein kit.



[champsman97045]

has anyone swapped out thier 1 1/2" belt to a 1" or 1 1/8". just ripped my 3rd belt which was heavy duty with 33,000 miles on it, 10,000 on trike, and ripped off the inside rim off the rear sprocket, so am going to replace both pulleys also. 01 ultra classic with frankenstein kit.

sounds like the rear axle is slightly out of line , causeing the belt to run off center



[msocko3]

sounds like the rear axle is slightly out of line , causeing the belt to run off center

:Agree: Something isn't right, those belts are strong. I'd be double checking alignment and look to see if its rubbing or the sprockets.



[JJTRIKER]

I know one thing for certain you dont want a 1 inch x 139 tooth belt just schredded one
Its a non harley part of course.



[tbear]

Bought the 2010 TG used in July and have now 8000 miles I put on it.

Just road it 150 miles today (yes in Michigan) and can almost kick myself for not putting the 30 tooth in it before now. Sure is easier and more fun to ride now, and after this winter I will get the TTS tuner. Not real sure I need a cam change if the tuner will help it some more.I have the stage 1 and the catless header in it too,but the 30th was really worth it and not that hard to do.
I think I will have withdrawels this winter,unless I get snow tires, hahaha.

Bob

I am also from Michigan, Monroe County area. Do alot of shopping at Cement City Harley. Love riding in that area with the wiffee on the weekends. Rick is the man to see for Trike parts. He seems to know what we want. I don't have the sprocket change yet; but have the Cam and Stage 1 setup and love it! Not sure if the sprocket change would change my Dyno work.? Will have to ask my mechanic about that one.



[msocko3]

I am also from Michigan, Monroe County area. Do alot of shopping at Cement City Harley. Love riding in that area with the wiffee on the weekends. Rick is the man to see for Trike parts. He seems to know what we want. I don't have the sprocket change yet; but have the Cam and Stage 1 setup and love it! Not sure if the sprocket change would change my Dyno work.? Will have to ask my mechanic about that one.

Sprocket change won't change the tune.



[JJTRIKER]

If you have a motor trike irs kit what belt are you running after making this conversion to the 30 tooth we are having a helluva time finding a 1 inch x 139 tooth gates say they make one but its really a 1 1/8 and the falcon from goodyear is a joke

Or let me say it isnt near hd enough for a trike



[rider1234us]

has anyone swapped out thier 1 1/2" belt to a 1" or 1 1/8". just ripped my 3rd belt which was heavy duty with 33,000 miles on it, 10,000 on trike, and ripped off the inside rim off the rear sprocket, so am going to replace both pulleys also. 01 ultra classic with frankenstein kit.

just finished replacing my 1 1/2" pulley with an 1 1/8" harley part # 40217-04 everything lined right up and a 30 mile test ride all looks good. am doing a much longer ride today. did not change the front pulley as there was no need.



[Gorilla]

Hi anyone out there that did this mod and purchased the tools want to sell them before I go buy new? The sprocket lock, the socket with pilot? PM me please Thanks Ted
