Trailer hitch

[joelin5386]

I need help finding a hitch to put on my 2015 tri glide, the one on my 09 wont work. Needing Recommendations.



[msocko3]

Rivco has one http://www.rivcoproducts.com/products/product.php?productid=791&cat=436&page=1.



[trikermutha]

have you checked bushtec?



[Livin2Ride]

I need help finding a hitch to put on my 2015 tri glide, the one on my 09 wont work. Needing <cite class="_Rm bc"> Recommendations:xzqxz:</cite>

Try these people - http://www.mchitch.com/Harley_Davidson_Trailer_Hitches.htm. I had their hitch on my 2012 and it fit my new 2015 just fine. M3's suggestion is also good and I think the Bushtec people have a hitch out for the newer models too.



[tfdeputydawg]

Just a suggestion to consider. You do place your warranty in jeopardy by adding a trailer hitch! Be prepared to make it disappear, if you have a drive train failure, before going to the dealer!
I do not know of any warranty claim denials on Harley's but I do on Wings!



[Moe55]

I have a Bushtec hitch on 2014.



[ScottUSN]

I just put a hitch from Open Road Outfitters ( http://www.openroadoutfitters.com/index.php?main_page=product_info&cPath=69_130&products_id=388 ) on my 2015 Tri Glide. The cost was $289.00 and it bolted right up. The design will hold the hitch in place with one of the loosened clamps while you tighten up the remaining mounts. The web sit also has an installation video that shows each of the steps involved.
BTW, The Küryakyn hitch did not fit the 2015! The part of the hitch that is supposed to slide over the rear frame member and hold the thing in place did not fit. I could have made it work by getting out the grinder and a bigger hammer, but I decided to go the easy way and return it.
The wiring harnesses sold by Open Road Outfitters fit right up also. Just make sure you know whether you want a 4 or 5 wire trailer connection. In 2014, Harley changed to a can-bus type wiring harness. You will need a harness made for the 2014-2015 baggers.
R/
Scott



[Steve on 3]

I have the Rivco as well. Straightforward installation. Nice product. Don't pull anything with it as yet but I have it.



[Postal Trucker]

I also have the Rivco hitch that I had mounted on the '12 and now on my '14. Have never hooked up the wiring harness as I only use it for a flag mount.

I may get the wiring harness for the '14 and get a trailer to tow behind.



[NamVet]

Got mine from Open Hitch,,,also the wiring came from them. You need a certain wire harness so you don't fry your ecm.



[joelin5386]

Just ordered my hitch from open road outfitters. now just have to figure out what harness I need. My trailer has a flat 4 pin connector, but it has 5 wires going to it.



[Livin2Ride]

Just ordered my hitch from open road outfitters. now just have to figure out what harness I need. My trailer has a flat 4 pin connector, but it has 5 wires going to it.

What brand of trailer is it and can you post a picture of your flat 4 plug? The only flat 4 plugs I've seen with 5 wires had a double (white) ground going to them.



[joelin5386]

I believe it is a diamond cargo. unable to post pic.



[Livin2Ride]

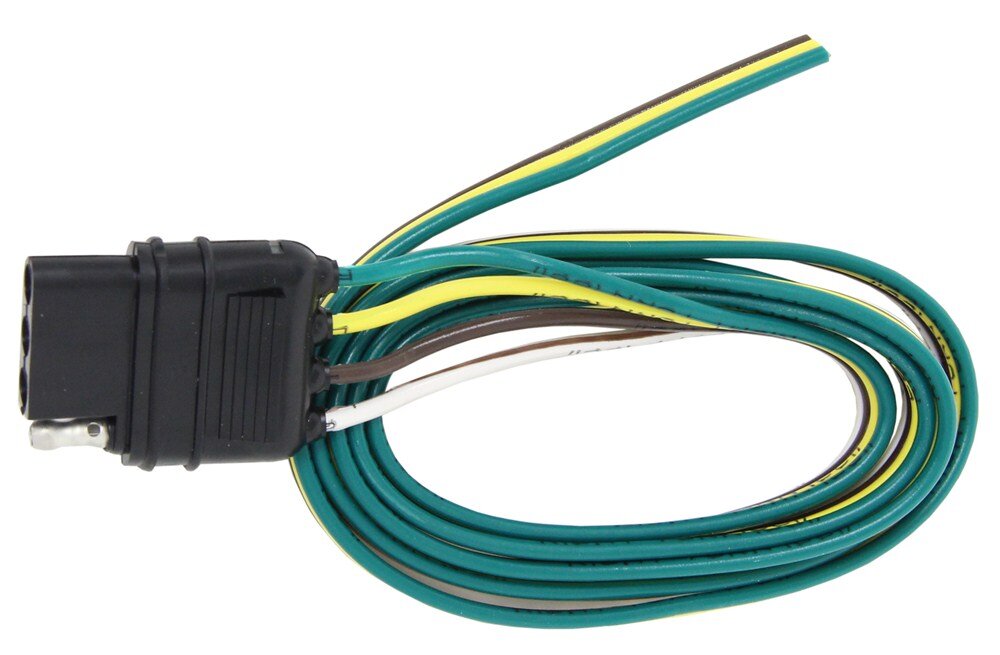

Ok, I'm not familiar with Diamond trailers so lets try this. Does your Trailer Plug look like this? A Flat 4 will have 3 female ports and 1 male plug (that's as close as I can describe it ) but it can have 2 wires going to 1 of the positions on the plug, most often the white (ground) or brown (running lights).



[joelin5386]

Yep it looks just like that one.



[Livin2Ride]

Yep it looks just like that one.

Then you need the 4 wire kit for you bike. I'm using components from this co. http://electricalconnection.com/index.php?route=common/home.

I suggest that you call them and tell them what you are trying to do and let them tell you which of their components you will need. IF you are not accostumed to doing this type of work you might want to find a shop to do it for you. The Canbus system will not like anything other than an isolated trailer wiring package, you can't just go cutting and splicing as you might have in the past.

BTW - the components from this company are the same ones you would get from MC Hitch and Open Road Outfitters.
