Tri Glide Trunk Lock.

[HarrisBikeNut]

Went to open the trunk on my 2018 Tri Glide Ultra recently and the lock assembly came out with the key? Looking at my Parts book, I can see there is a U shaped clip that holds the lock in place. So I ordered not only the clip, but the O ring and foam washer as there was no evidence of either! Parts are ready to collect but I am hoping a forum member can provide guidance on how to replace the lock and clip please! I have the inner cover removed (2 countersunk allen bolts) but and at a loss as to what next. For some reason, my download Harley service manual isn't showing the diagrams any more! It never rains, but it pours!!!
TIA

Bob.



[Jack Klarich]

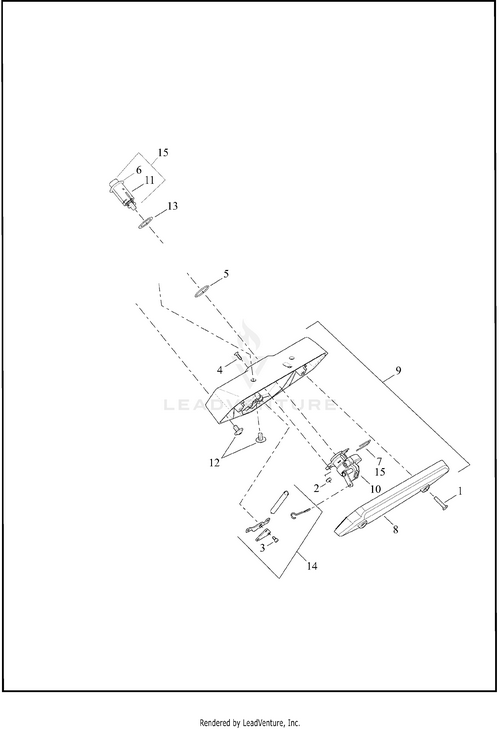

Look at this parts diagram #10 is the lock



[Jack Klarich]

#11 in above diagram is the lock



[ISP-FL]

After dealing with these trunk locks for eight years it is one of the things I check and perform preventive maintenance on every other oil change. I check for tightness then lube with Harley lube syringe. They are definitely prone to failure.
